Notes on sealant path for timing case cover - AH01.40-P-1000-01RQ

WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 159

IMPORTANT The lines (1) identify the sealant path.

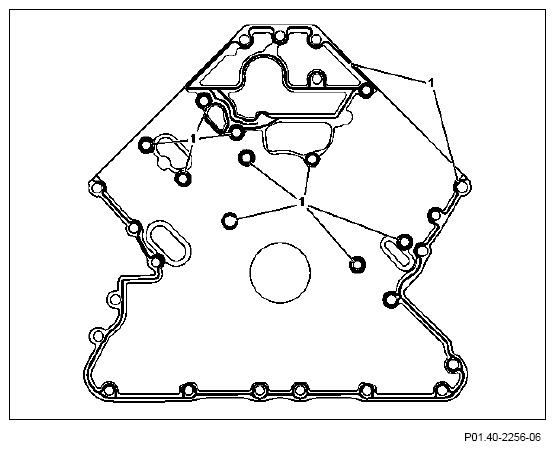

Fig 1: Identifying Timing Case Cover Sealant Applying Area - Engine 159
G10037294Courtesy of MERCEDES-BENZ USA

IMPORTANT Sealing surfaces must be cleaned. The sealant must only be applied to the specified surface in the form of a bead of height and width 2.5 mm (+1.0 mm). The sealing compound must be applied within 10 min. The sealant bead must not be spread. Use only the sealant indicated in the repair materials.
