Notes on sealant path for timing case cover - AH01.40-P-1000-01OLP
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 622, 626
The sealing surfaces must be cleaned. The sealant beads may not be smeared.
Use only the sealant indicated in the repair materials.
Mount timing case cover within 10 minutes of application of the sealant.

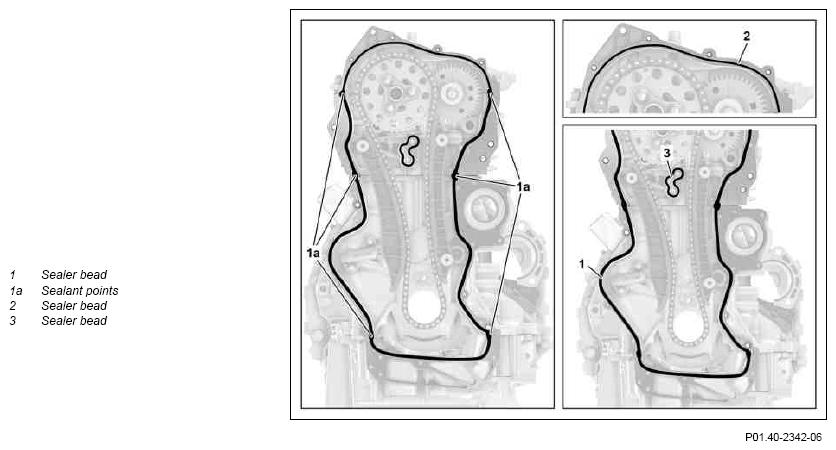

The sealant bead (1) may only be applied on the specified surfaces with a diameter of 5 mm (±2 mm).
The sealant beads (2, 3) may only be applied on the specified surfaces with a diameter of 3.5 mm (±1 mm).
The sealant points (1a) may only be applied on the specified surfaces with a diameter of 11 mm (±2 mm) over a length of 10 to 15_mm.
