Notes on sealant path for timing case cover - AH01.40-P-1000-01MMB
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 152.9, 157, 278

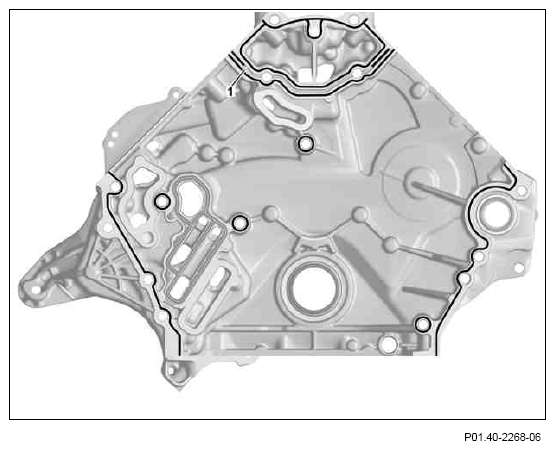

The sealant must be applied only to the specified surfaces in the form of a bead. This is with a height and width of 2.0 mm (+ 0.2 mm) in the area of contact areas with coolant and with a height and width of 1.3 mm (+ 0.2 mm) in the area of contact areas with oil.
The sealing surfaces must be cleaned.
The sealant bead must not be spread.
Use only the sealant indicated in repair materials.
Mount timing case cover within 10 minutes after application of the sealant.
Do not seal left upper coolant bore (1) to cylinder crankcase.
Otherwise the coolant circuit function may be impaired.
