Notes on sealant path for timing case cover - AH01.40-P-1000-01MMA
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276

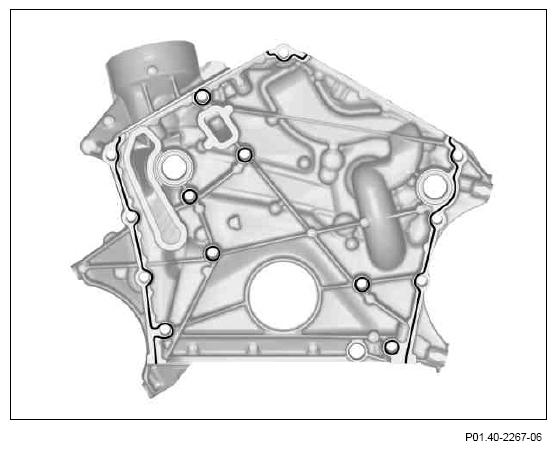

The sealant may only be applied to the prescribed surfaces in the form of a bead with a height and width of
1 3 mm (±0, 2 mm).
The sealing surfaces must be cleaned.
The sealant bead must not be spread. Use only the sealant indicated in the repair materials. Mount timing case cover within 10 minutes after application of the sealant.
