Notes on sealant path for timing case cover - AH01.40-P-1000-01LFD
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 222
Sealant path on timing case cover
Ensure that the mating points between the oil pan and crankcase are clean and free of oil.
Otherwise, oil leaks can occur.

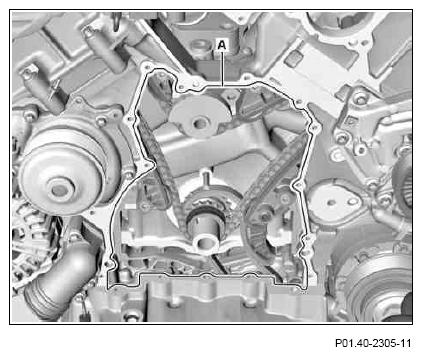

The superimposed line (A) shows the sealant path.
Sealing surfaces must be free of oil and grease. Apply sealant to surfaces as a bead 1.5 mm (±0.5 mm) wide. The sealant must be applied within 10 min. The sealant bead must not be spread.
The sealant must be applied in the upper area of the timing case cutout in the center area of the sealing surface since the sealant slides downwards due to placement of the timing case cover.
