Notes on sealant path for timing case cover - AH01.40-P-1000-01D
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 166.940/960/961/990/991, 668.914/940/941/942

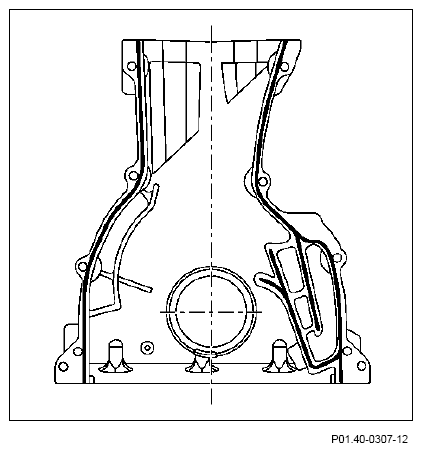

Sealant path on timing case cover
Clean sealing surfaces and apply sealant only to the specified areas in a bead measuring 2.0 mm 0.5 mm. (See illustration below)
The sealant must be applied within 10 minutes.
Only the silicone sealant listed in the repair materials may be used.
