Notes on sealant path for timing case cover - AH01.40-P-1000-01CD
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 651
General information:
- Sealing surface:
- free of anticorrosion agents
- free of machining residues
- oil and grease-free
- dust-free
- The sealing surface must be flat (replace bent components).

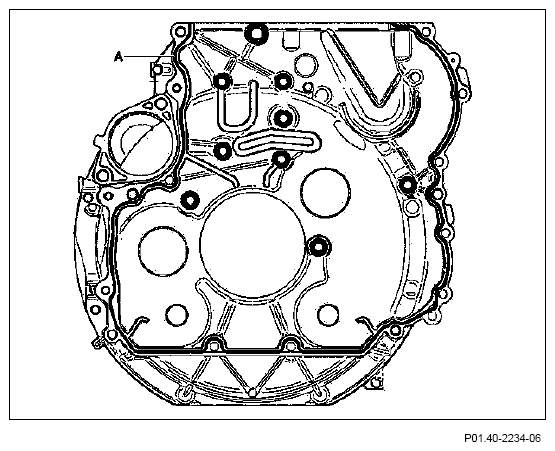

- Line (A) identifies the sealant run.
- Discontinuity of the sealant bead is not permissible.
- Do not spread sealing bead.
- Component temperature: min. +7°C up to a max. of +25°C
- Sealant temperature: min. +7°C up to a max. of +25°C
- Maximum assembly time: 7 min.
- Sealant bead diameter: 2 mm
- Nozzle diameter: 1.5 mm
