Notes on sealant path for timing case cover - AH01.40-P-1000-01AL
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 640

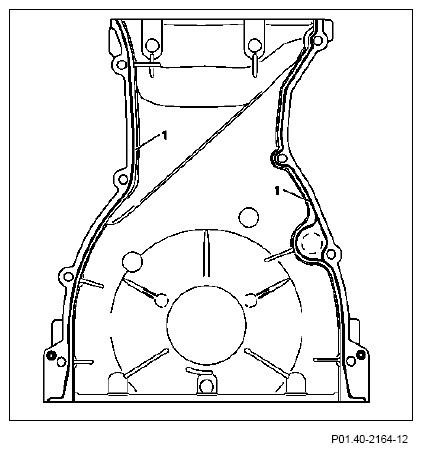

The lines (1) identify the application of the sealant.
Clean sealing surfaces. Sealant may only be applied to the specified surfaces in the form of a bead with height and width of 1.2 mm (+ 0, 5 mm). Sealant swelling at the end points (cylinder head, engine oil pan) up to 2 mm are permissible. The sealant must be applied within 10 min. The sealant bead must not be spread. Only the sealant listed in the repair description may be used.
