Notes on sealant path for timing case cover - AH01.40-P-1000-01AK

WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 266.920/940/960/980 in MODEL 169.0/3, 245.2

IMPORTANT Clean sealing surfaces. Apply sealing compound as shown in the form of a bead with a height and width of 1.5 mm ±0.5 mm.

The sealant bead must not be spread.

Only the approved sealant may be used. The timing case cover must be installed within 10 minutes.

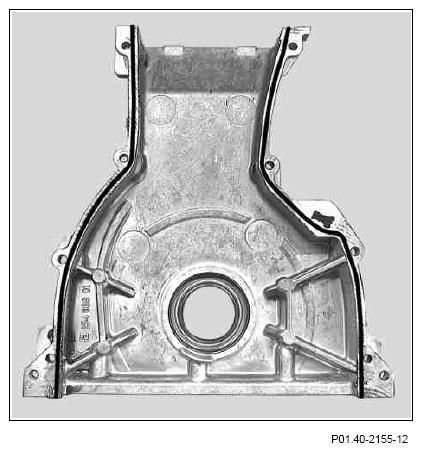

Fig 1: Identifying Timing Case Cover Sealant Applying Area
G10037278Courtesy of MERCEDES-BENZ USA
