Notes on sealant path for timing case cover - AH01.40-P-1000-01A
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 137.970
Application of sealant to timing case cover

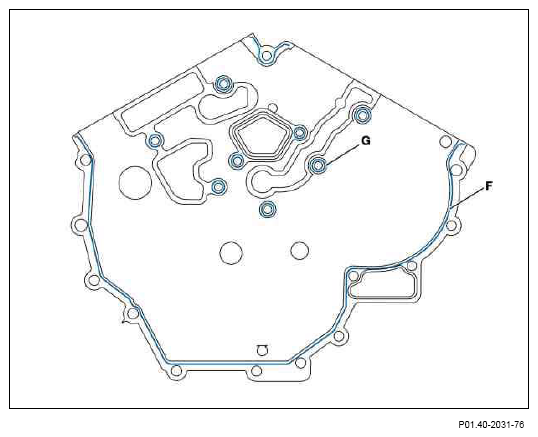

The timing case cover is sealed using a silicone sealant at the positions F
.
The sealant must only be applied to the specified surfaces with a bead of 2.0 mm ±0, 5 mm.
The sealant must be applied within 10 minutes.
The silicone bead should not be spread. Only the approved silicone sealant may be used.
