Notes on sealant path for oil pan - AH01.45-P-0001-01VA

WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272

The lines (A and 1) identify the sealant paths.

The sealing surface must be cleaned. The sealant must only be applied to the specified surface in the form of a bead of height and width 2.0 mm (±0.5 mm). The sealant must be processed within 10 minutes. The sealant bead must not be spread. Use only the sealant indicated in the repair materials.

Sealant application on oil pan bottom section on engine with front sump without code M005

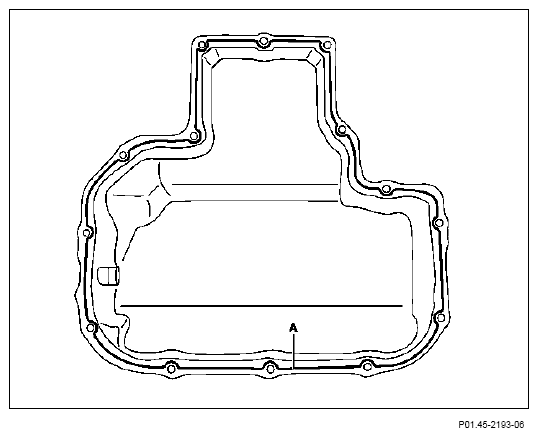

Fig 1: Identifying Oil Pan Bottom Section Sealant Applying Area On Engine

Courtesy of MERCEDES-BENZ USA

Sealant application on oil pan top section on engine with front sump without code M005

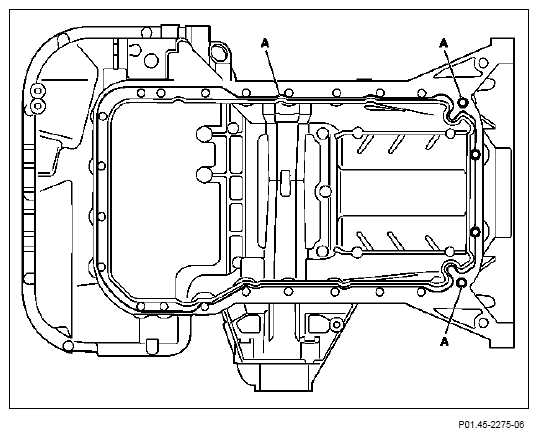

Fig 2: Identifying Oil Pan Bottom Section Sealant Applying Area On Engine

Courtesy of MERCEDES-BENZ USA

Sealant application on oil pan bottom section on engine with front sump with code M005

Fig 3: Identifying Oil Pan Bottom Section Sealant Applying Area On Engine

Courtesy of MERCEDES-BENZ USA

Sealant application on oil pan top section on engine with front sump with code M005

Fig 4: Identifying Sealant Application On Oil Pan Top Section On Engine

Courtesy of MERCEDES-BENZ USA

Sealant application on oil pan bottom section on engine with middle sump

Fig 5: Identifying Sealant Applying Area On Oil Pan Bottom Section On Engine

Courtesy of MERCEDES-BENZ USA

Sealant application on oil pan top section on engine with middle sump

Fig 6: Identifying Sealant Applying Area On Oil Pan Top Section With Middle Sump

Courtesy of MERCEDES-BENZ USA

Sealant application on oil pan bottom section on engine with rear sump

Fig 7: Identifying Sealant Applying Area On Oil Pan Bottom Section With Rear Sump

Courtesy of MERCEDES-BENZ USA

Sealant application on oil pan top section on engine with rear sump

Fig 8: Identifying Sealant Applying Area On Oil Pan Top Section With Rear Sump

Courtesy of MERCEDES-BENZ USA
