Notes on sealant path for oil pan - AH01.45-P-0001-01TJ
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 629

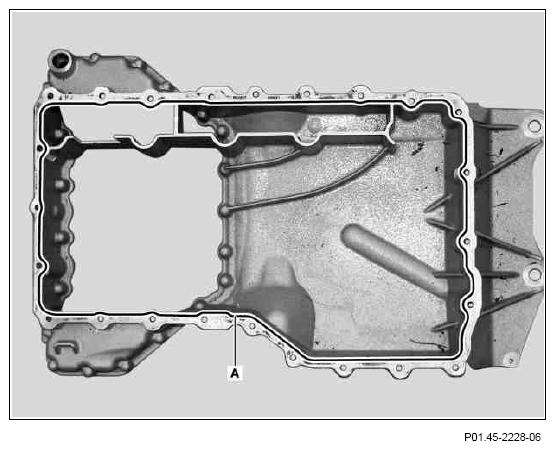

Sealant path to top part of oil pan
The traced line (A) identifies the sealant run.
Sealing surfaces must be free of oil and grease. Apply sealant to surfaces as a bead 1.5 mm (±0.5 mm) wide. The sealant must be applied within 10 min. The sealant bead must not be spread. as otherwise leakages may occur.
Shown on engine 629.910
Courtesy of MERCEDES-BENZ USA

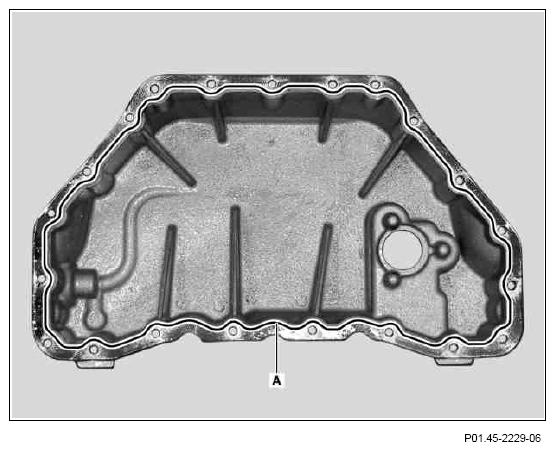

Sealant path to oil pan, bottom part
The traced line (A) identifies the sealant run.
Sealing surfaces must be free of oil and grease. Apply sealant to surfaces as a bead 1.5 mm (±0.5 mm) wide. The sealant must be processed within a period of 10 minutes. The sealant bead must not be spread. as otherwise leakages may occur.
Shown on engine 629.910
Courtesy of MERCEDES-BENZ USA
