Notes on sealant path for oil pan - AH01.45-P-0001-01SX

ENGINE 273

Sealant path for oil pan with front sump

The line (A) identifies the sealant run.

The sealing surface must be cleaned. The sealant must only be applied to the specified surface in the form of a bead of height and width 2.0 mm (±0.5 mm). The sealing compound must be applied within 10 min. The sealant bead must not be spread. Use only the sealant indicated in repair materials.

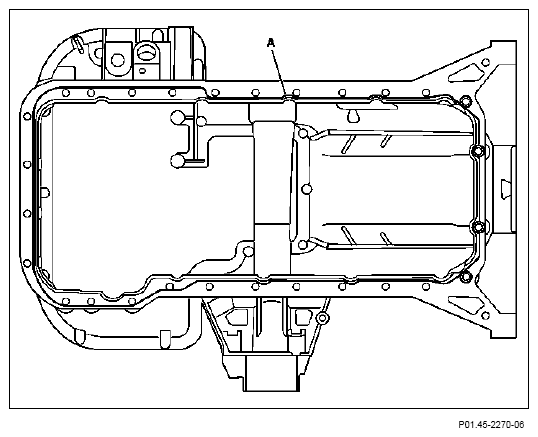

Fig 1: Identifying Oil Pan Sealant Applying Area With Front Sump

Courtesy of MERCEDES-BENZ USA

Sealant path for oil pan with rear sump

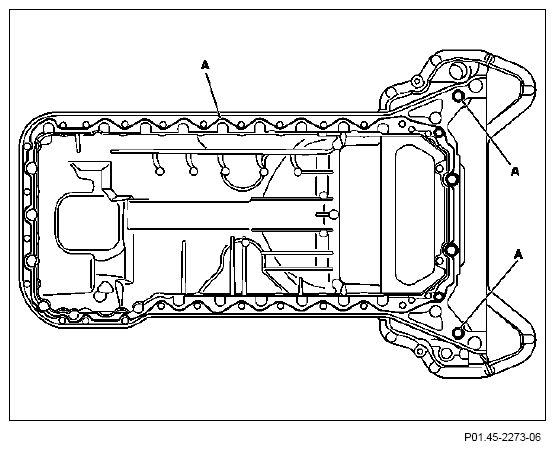

Fig 2: Identifying Oil Pan Sealant Applying Area With Rear Sump

Courtesy of MERCEDES-BENZ USA

Sealant path for oil pan with center sump

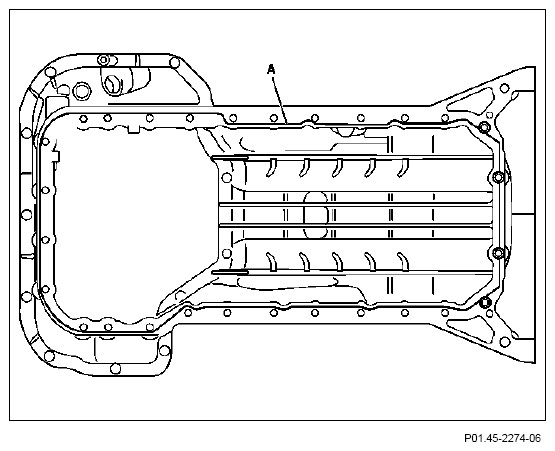

Fig 3: Identifying Oil Pan Sealant Applying Area With Center Sump

Courtesy of MERCEDES-BENZ USA

Sealant path for engine 273 with 4MATIC

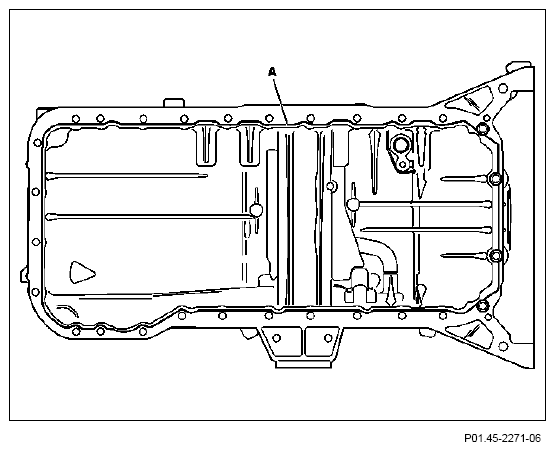

Fig 4: Identifying Engine 273 Sealant Applying Area With 4MATIC

Courtesy of MERCEDES-BENZ USA

Sealant path for oil pan bottom section with 4MATIC

Fig 5: Identifying Sealant Applying Area On Oil Pan Bottom Section With 4MATIC

Courtesy of MERCEDES-BENZ USA

Sealant path for oil pan bottom section for engine with front sump

Fig 6: Identifying Sealant Applying Area On Oil Pan Bottom Section With Front Sump

Courtesy of MERCEDES-BENZ USA

Sealant path for oil pan bottom section for engine with center sump

Fig 7: Identifying Sealant Applying Area On Oil Pan Bottom Section With Center Sump

Courtesy of MERCEDES-BENZ USA

Sealant path for oil pan bottom section for engine with rear sump

Fig 8: Identifying Sealant Applying Area On Oil Pan Bottom Section With Rear Sump

Courtesy of MERCEDES-BENZ USA
