Notes on sealant path for oil pan - AH01.45-P-0001-01SLR
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 155 in MODEL 199

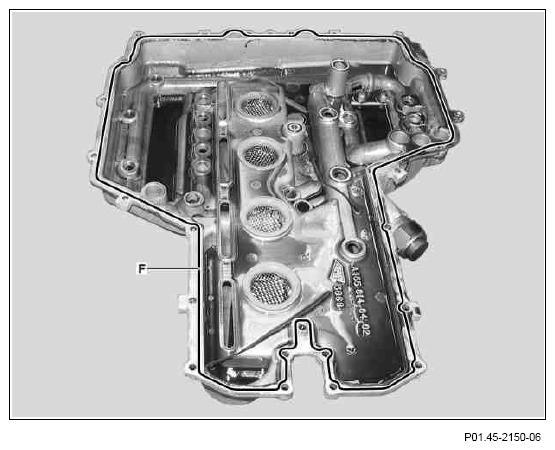

The line drawn in (F) identifies the sealant application.
The sealing compound should be applied only to the indicated surface in the form of a bead of height 1.0 mm and width 2.0 mm. The sealing compound must be applied within 10 min. The silicone bead should not be spread. Only the silicone sealant listed in the section Repair products may be used.
