Notes on sealant path for oil pan - AH01.45-P-0001-01R
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 113.963/967/968/987/988/989/990/991/992/995

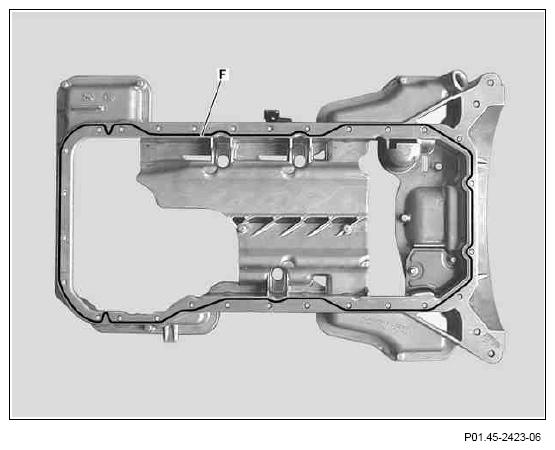

Courtesy of MERCEDES-BENZ USA
The traced line in (F) identifies the sealant application.
Clean sealing surface. The sealant must be applied only to the specified surface as a bead with a height and width of 2.0 mm (±0.5 mm). The sealing compound must be applied within 10 min. The silicone bead should not be spread. Only the silicone sealant listed in the repair materials may be used.

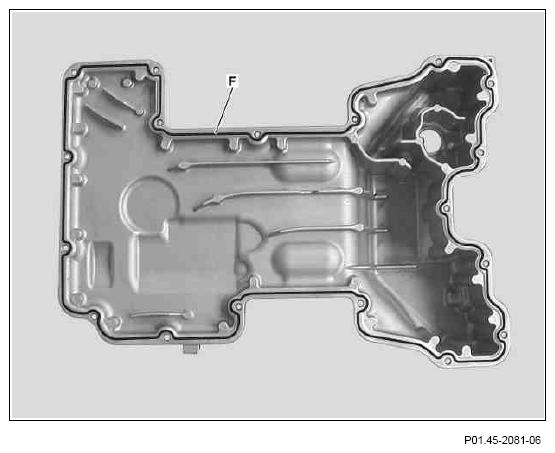

Courtesy of MERCEDES-BENZ USA
The traced line in (F) identifies the sealant application.
Clean sealing surface. The sealant must be applied only to the specified surface as a bead with a height and width of 2.0 mm (±0.5 mm). The sealing compound must be applied within 10 min. The silicone bead should not be spread. Only the silicone sealant listed in the repair materials may be used.
