Notes on sealant path for oil pan - AH01.45-P-0001-01ORA
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 607

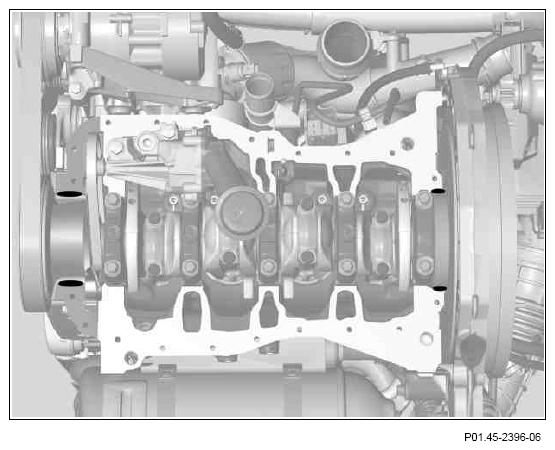

The sealant may only be applied to the specified surfaces on the cylinder crankcase and firewall cover at certain points with a height and width of 2.0 mm (+/- 1.0 mm). The sealant must be applied within 10 min. The sealant must not spread.
Sealing surfaces must be cleaned.
Use only the sealant indicated in the repair materials.
Mount oil pan within 10 minutes after application of the sealant.
