Notes on sealant path for oil pan - AH01.45-P-0001-01MA
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 628.960/961/962/963

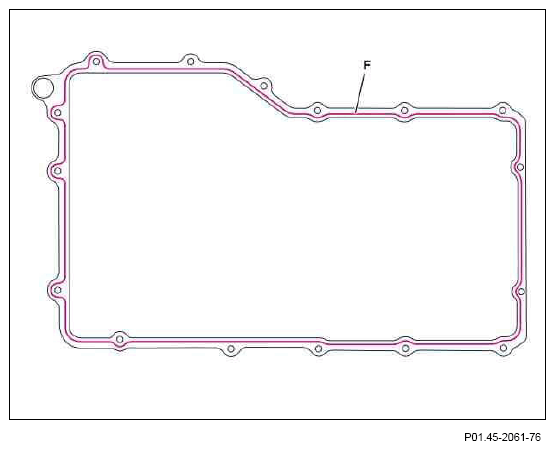

Application of sealant to oil pan top section
The traced line F marks the sealant application.
The sealant must be applied only to specified surfaces with a bead of 1.5 mm (+1.0 mm).
The sealing compound must be applied within 10 minutes.
The silicone bead should not be spread. Only the approved silicone sealant may be used.
Application of sealant to bottom part of oil pan
The traced line F marks the sealant application.
The sealant must only be applied to specified surfaces with a bead of 1.5 mm (+1.0 mm). The sealing compound must be applied within 10 minutes. The silicone bead should not be spread. Only the approved silicone sealant may be used.
