Notes on sealant path for oil pan - AH01.45-P-0001-01GZ
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 113.964 in MODEL 164.175
ENGINE 113.971 in MODEL 251.075/175

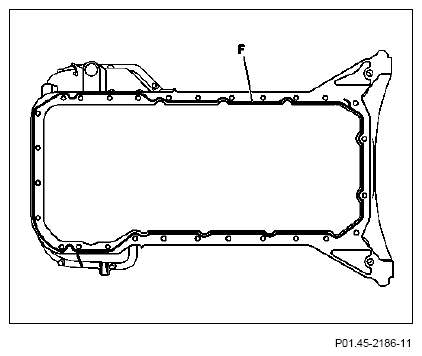

Sealant path on oil pan top section
The traced line (F) identifies the sealant path.
The sealant must only be applied to the specified surfaces in the form of a sealant bead 2.0 mm (±0.5 mm) diameter.
The sealant must be applied within 10 min. The sealant bead must not be spread. Use only the sealant indicated in the repair materials.
Courtesy of MERCEDES-BENZ USA

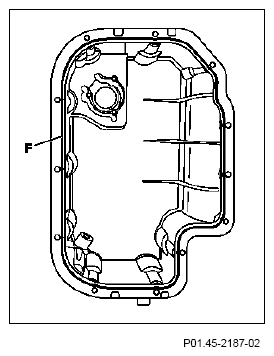

Sealant path on bottom part of oil pan
The traced drawn (F) identifies the sealant path.
The sealant must only be applied to specified surfaces in the form of a sealant bead 2.0 mm (±0.5 mm) diameter.
The sealant must be applied within 10 min. The sealant bead must not be spread. Use only the sealant indicated in the repair materials.
Courtesy of MERCEDES-BENZ USA
