Notes on sealant path for oil pan - AH01.45-P-0001-01F

WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 166.940/960/961/990/991/995, 668.914/940/941/942

IMPORTANT Clean sealing surfaces, apply sealant only to the specified surfaces with a bead of 2.0 mm ±0.5 mm (refer to fig. "Sealant path").

The sealant must be applied within 10 minutes.

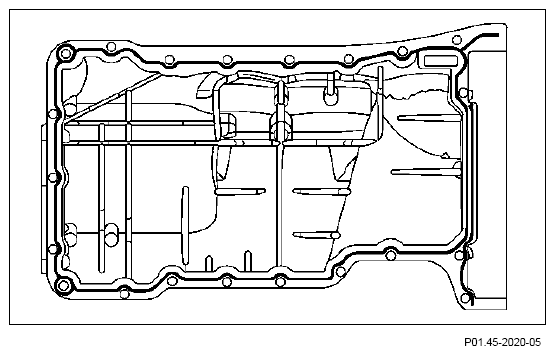

Fig 1: Identifying Sealant Applying Area On Oil Pan
G10037322Courtesy of MERCEDES-BENZ USA
