Notes on sealant path for oil pan - AH01.45-P-0001-01E
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 113.941/942/960/962/965/981/982/993

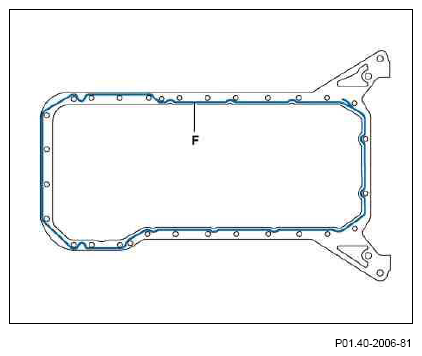

Sealant path on the oil pan top section
The line drawn (F) identifies the course of application of sealant.
The sealant must only be applied to specified surfaces in the form of a sealant bead 2.0 mm (±0.5 mm) diameter.
The sealant must be processed within 10 min. The sealant bead must not be spread. Use only the sealant indicated in repair materials.
Courtesy of MERCEDES-BENZ USA
Sealant path to bottom part of oil pan
The line drawn (F) identifies the course of application of sealant.
The sealant must only be applied to specified surfaces in the form of a sealant bead 2.0 mm (±0.5 mm) diameter.
The sealant must be processed within 10 min. The sealant bead must not be spread. Use only the sealant indicated in repair materials.
Courtesy of MERCEDES-BENZ USA
