Notes on sealant path for oil pan - AH01.45-P-0001-01D
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 113.940/943/944/961/980/984
Application of sealant to top part of oil pan

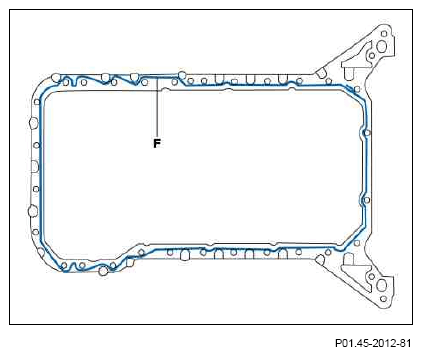

The traced line F marks the sealant application.
Clean sealing surfaces, apply sealant only to the specified surfaces with a bead of 2.0 mm ±0.5 mm.
The sealant must be applied within 10 minutes.
The silicone bead should not be spread. Only the silicone sealant listed in the repair materials may be used.
Application of sealant to bottom part of oil pan
The traced line F marks the sealant application.
Clean sealing surfaces, apply sealant only to the specified surfaces with a bead of 2.0 mm ±0.5 mm.
The sealant must be applied within 10 minutes.
The silicone bead should not be spread. Only the silicone sealant listed in the repair materials may be used.
