Notes on sealant path for oil pan - AH01.45-P-0001-01CMG
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156 in MODEL 204.077/277

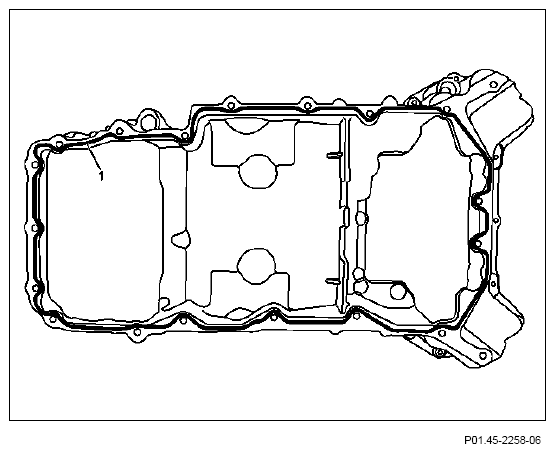

Sealant application on oil pan top section
The line (1) identifies the sealant path.
The sealing surface must be cleaned. The sealant must only be applied to the specified surface in the form of a bead of height and width 2.0 mm (±0.5 mm).
The sealant must be applied within 10 min.
The bead should not be spread. Use only the sealant indicated in repair materials.

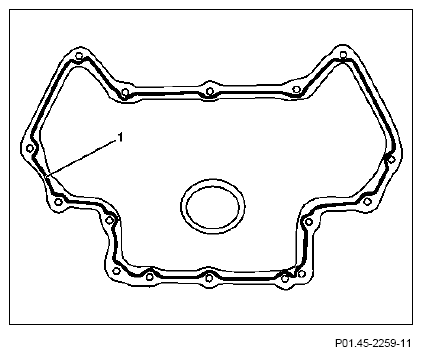

Sealant application to rear of oil pan bottom section

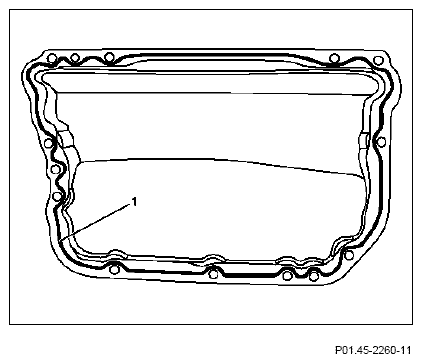

Sealant application to front of oil pan bottom section
