Notes on sealant path for oil pan - AH01.45-P-0001-01CD

WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651 in MODEL 204, 205, 207, 212, 218, 221, 222

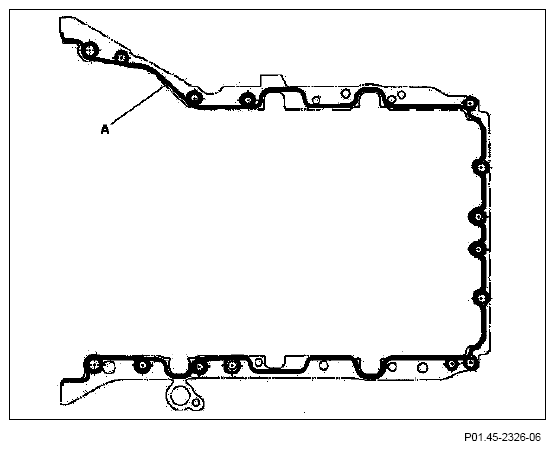

Fig 1: Identifying Sealant Applying Area On Oil Pan - Engine 651

Courtesy of MERCEDES-BENZ USA

General information:

Sealing surface must be free of anticorrosion agents, free of machining residues, oil and free of grease and free of dust.
The sealing surface must be flat (replace bent components).
Line (A) identifies the sealant path.
Discontinuity of the sealant bead is not permissible.
Do not spread sealing bead.
Component temperature: At least 7 °C to maximum 25 °C
Sealant temperature: At least 7 °C to maximum 25 °C
Maximum assembly time: 7 min.
Sealant bead diameter: 2 mm
Nozzle diameter: 1.5 mm
