Notes on sealant path for oil pan - AH01.45-P-0001-01C
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 112 (except 112.912/946)

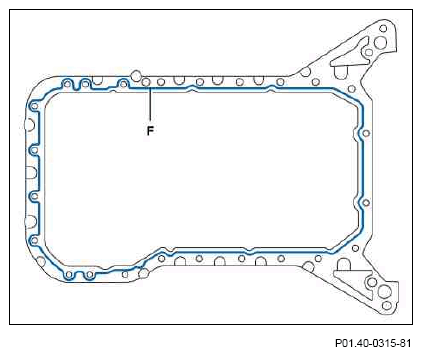

Application of sealant to top part of oil pan
The traced line F marks the sealant application.
Clean sealing surfaces, sealant may only be applied to the specified areas in a bead measuring 2.0 mm ±0.5 mm.
The sealant must be used within 10 min.
The silicone bead should not be spread. Only the silicone sealant listed in the repair materials may be used.

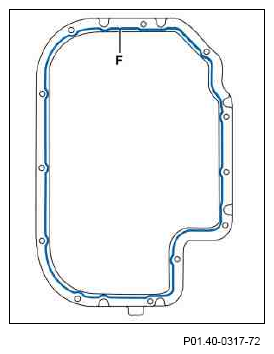

Application of sealant to bottom part of oil pan
The traced line F marks the sealant application.
Clean sealing surfaces, sealant may only be applied to the specified areas in a bead measuring 2.0 mm ±0.5 mm.
The sealant must be used within 10 min.
The silicone bead should not be spread. Only the silicone sealant listed in the repair materials may be used.
