Notes on sealant path for oil pan - AH01.45-P-0001-01B
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 112.912/946

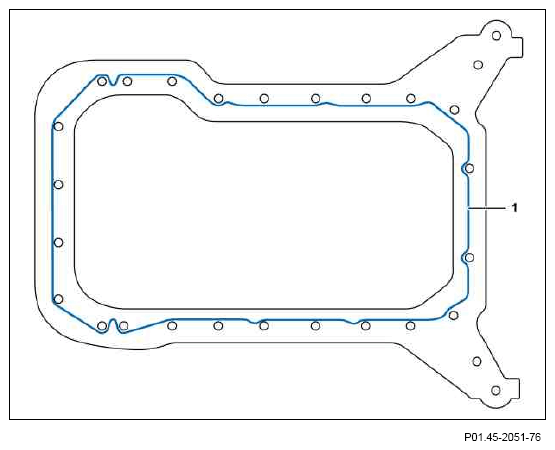

Sealant path to top part of oil pan
The traced line 1 marks the sealant application.
The sealant must be applied only to the specified surfaces with a bead of 2.0 mm ±0.5 mm.
The sealant must be applied within 10 minutes.
The silicone bead should not be spread. Only the approved silicone sealant may be used.

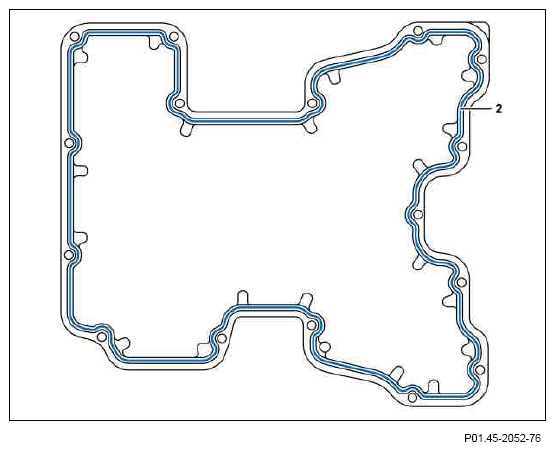

Sealant path to oil pan, bottom part
The traced line 2 marks the sealant application.
