Notes on sealant path for front cover to cylinder head xxx - AH01.30-P-1000-02V
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273

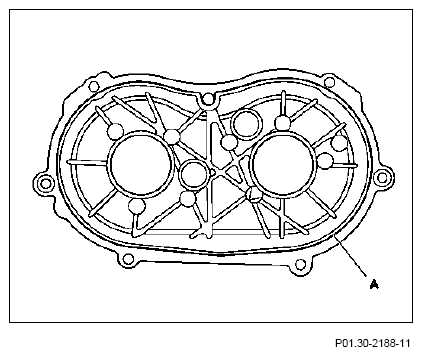

Application of sealant to the right front cover
The line (A) identifies the sealant run.
The sealing compound must only be applied along the line (A) in the form of a bead with a height and width of 1.0 mm (+0.5 mm).
The sealing compound must be applied within 10 min.
The sealant bead must not be spread. Only the approved sealant may be used.

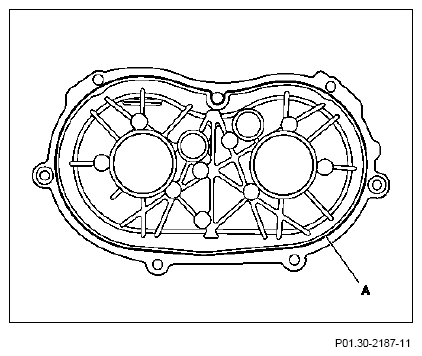

Application of sealant to the left front cover
