Notes on sealant path for front cover to cylinder head xxx - AH01.30-P-1000-02TJ
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 629
Attach the cover within 10 minutes of applying sealant. Do not spread sealing bead. Use only the sealant listed in the repair instructions.
Otherwise leaks could occur if this is not observed.

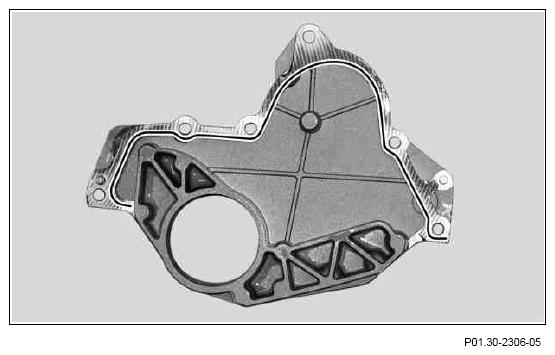

Clean sealing surfaces and apply sealant to marked surfaces with a bead thickness of 1.5 (0, 5) mm.
