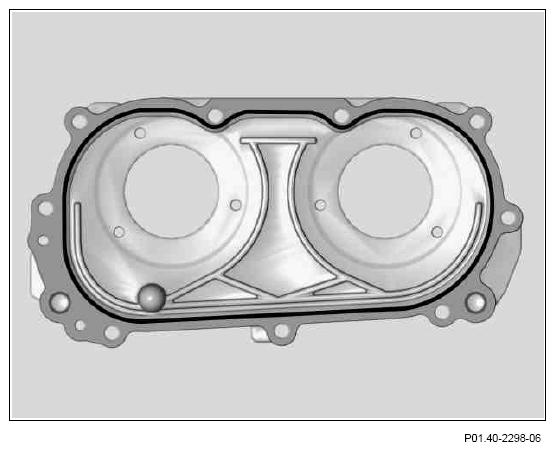

Notes on sealant path for front cover to cylinder head xxx - AH01.30-P-1000-02MR
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 274
The sealant may only be applied to the specified surface in the form of a bead with a height and width of 1.0 mm (±0.3 mm). The sealant must be processed within 10 minutes. The sealant bead must not be spread.
The sealing surface must be cleaned. Use only the sealant indicated in the repair materials. Install the cover within 10 min after application of the sealant.
