Notes on sealant path for cylinder head cover - AH01.30-P-1000-08V
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272

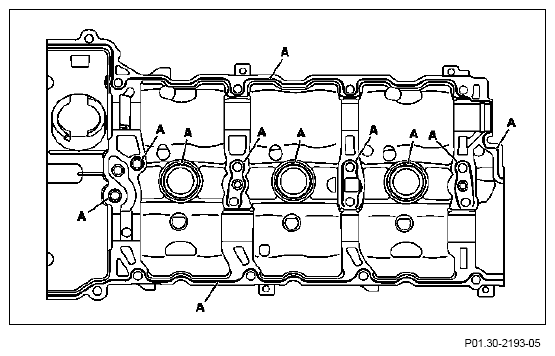

Sealant beads on the right cylinder head cover
The lines (A) identify the sealant beads.
The sealant must be applied along the specified lines (A) in the form of a sealant bead of
1.0 mm ±0.2 mm.
The sealing compound must be applied within 10 min.
The sealant bead must not be spread. Only the approved sealant may be used.
sealant beads on the left cylinder head cover
The lines (A) identify the sealant beads.
The sealant must be applied only along the specified lines (A) in the form of a sealant bead of
1.0 mm ±0.2 mm.
The sealing compound must be applied within 10 min.
The sealant bead must not be spread. Only the approved sealant may be used.
