Notes on sealant path for cylinder head cover - AH01.30-P-1000-08OLP
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 622
ENGINE 626

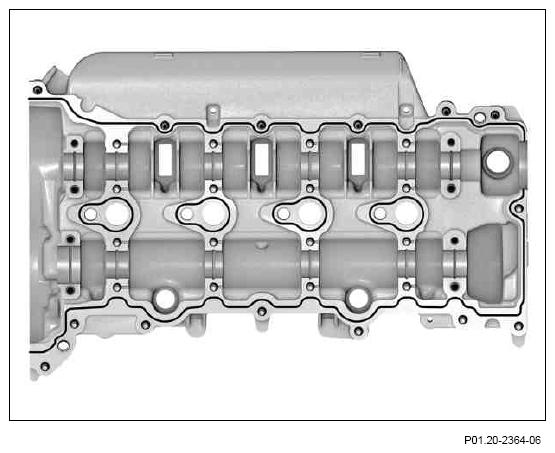

The sealant may only be applied to the specified surfaces in the form of a bead with height and width of 1.5 mm (±1 mm). The sealant must be processed within 10 minutes. The sealant bead must not be spread.
The sealing surfaces must be cleaned. Use only the sealant indicated in the repair materials. Mount cylinder head cover within 10 minutes of application of the sealant.
