Notes on sealant path for cylinder head cover - AH01.30-P-1000-08MTA
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 133

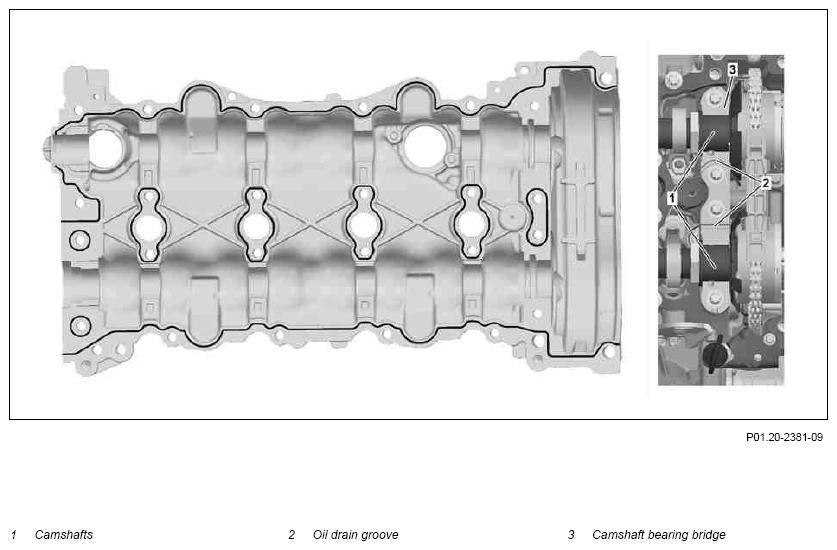

Sealant path on camshaft bearing bridge with oil drain groove

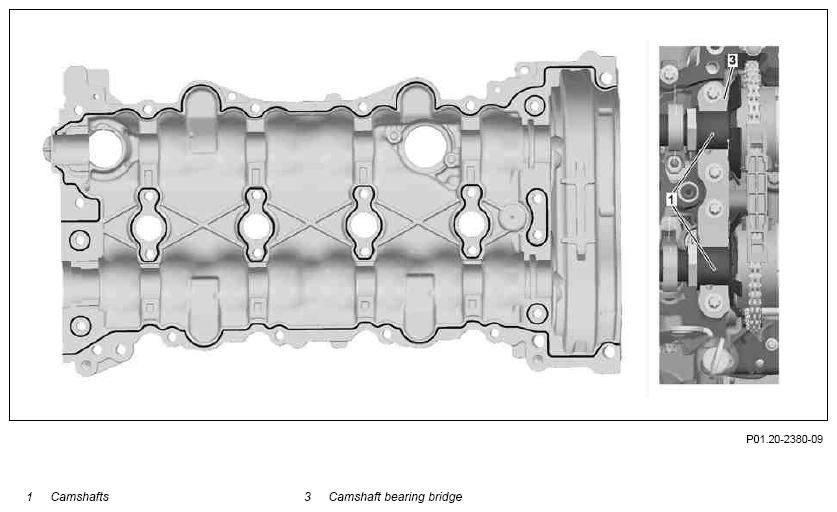

Sealant path on camshaft bearing bridge without oil drain groove
The sealant may only be applied to the specified surfaces in the form of a bead with height and width of 1.0 mm (±0.3 mm).
The sealant must be processed within 10 minutes.
The sealant bead must not be spread.
The sealing surfaces must be cleaned.
Use only the sealant indicated in the repair materials.
The cylinder head cover must be mounted within 10 minutes of the application of the sealant.
