Notes on sealant path for cylinder head cover - AH01.30-P-1000-08AK
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 266.920/940/960 in MODEL 169.0/3, 245.2

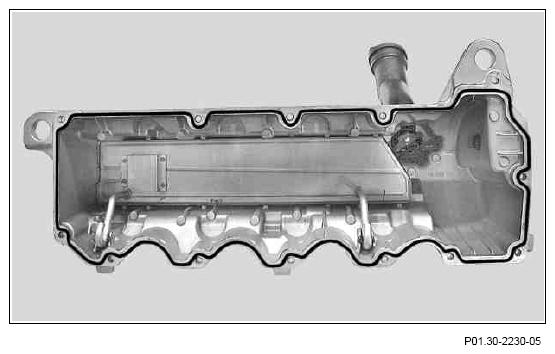

Clean sealing surfaces, apply sealant to the sealing surfaces as shown in the form of a bead with a height and width of 1.5 mm ±0.5 mm.
The sealant bead must not be spread. Only the approved sealant may be used. The cylinder head cover must be installed within 10 minutes.
