Information on application of sealant to end cover of crankcase - AH01.40-P-1000-04CD

WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651

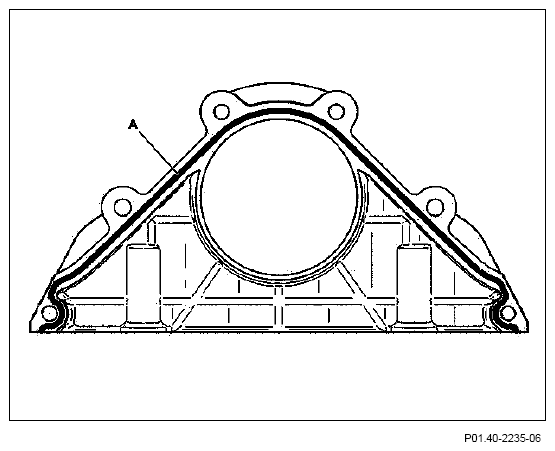

Fig 1: Identifying Crankcase End Cover Sealant Applying Area - Engine 651

Courtesy of MERCEDES-BENZ USA

General information:

Sealing surface must be free of anticorrosion agents, free of machining residues, oil and free of grease and free of dust.
The sealing surface must be flat (replace bent components).
Line (A) identifies the sealant run.
Discontinuity of the sealant bead is not permissible.
Do not spread sealing bead.
Component temperature: Minimum +7 °C to maximum +25 °C
Sealant temperature: Minimum +7 °C to maximum +25 °C
Maximum assembly time: 7 min.
Sealant bead diameter: 2 mm
Nozzle diameter: 1.5 mm
