Information on application of sealant to crankcase bottom section - AH01.40-P-1000-03TJ
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 629

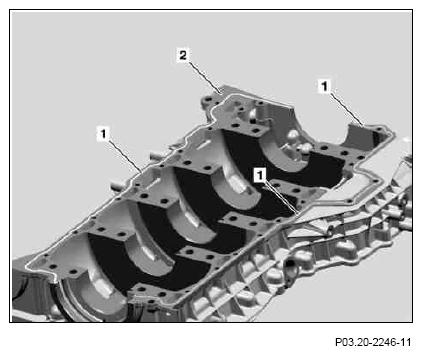

Clean sealing surfaces, particularly in area of grooves, because these serve as storage when the bottom section of the crankcase spans. Apply sealant on marked lines with a bead thickness of 2.0 mm ±0.5 mm; attach bottom section of crankcase, within 10 min. after applying sealant.
Do not spread sealing bead. Use only the sealant listed in the repair instructions.
