Information on application of sealant to crankcase bottom section - AH01.40-P-1000-03RQ
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 159

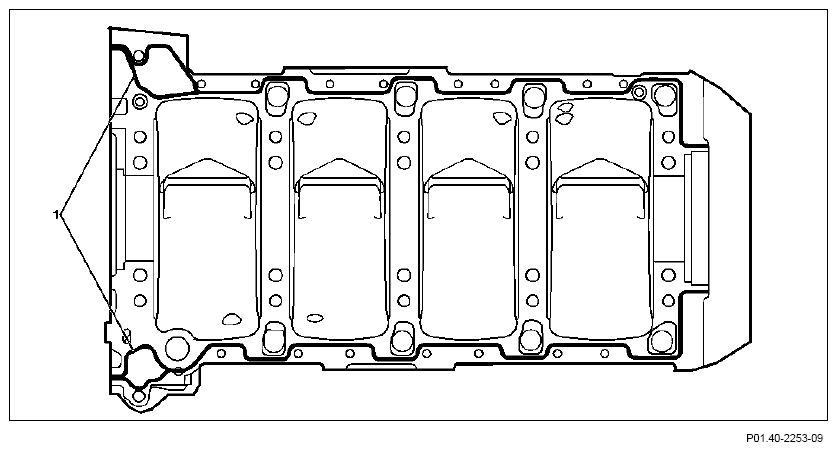

The lines (1) identify the application of the sealant.
Sealing surfaces must be clean. Sealant must only be applied to the specified surface in the form of a bead of height and width 2.5 mm (+1.0 mm).
The sealing compound must be applied within 10 min.
The sealant bead must not be spread. Use only the sealant indicated in repair materials.
