ENGINE 628.963 in MODEL 163.128
ENGINE 628.962 in MODEL 463.309/332/333
ENGINE 628.961 in MODEL 211.028
ENGINE 628.960 in MODEL 220.028/128
Mount cylinder crankcase lower section after applying the sealant within a period of 10 minutes.

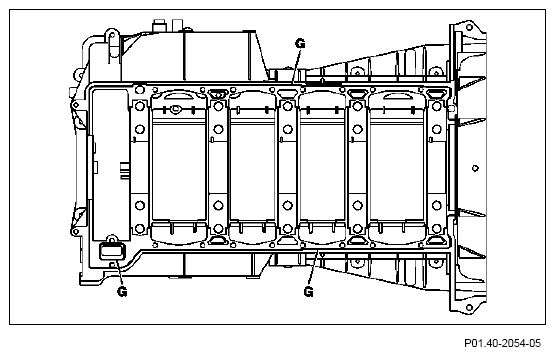

Do not spread sealing bead. Use only the sealant listed in the repair instructions. Clean sealing surfaces, apply sealant to marked line (G) with bead thickness of 2.0 mm (±0.5 mm).
