Information on application of sealant to crankcase bottom section - AH01.40-P-1000-03AMG
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156

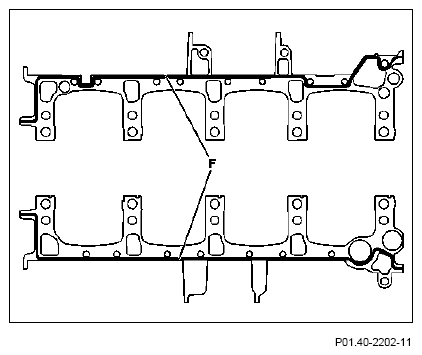

Sealant path
The line drawn in (F) identifies the sealant application.
The sealant must be applied only to specified surfaces with a bead of 2.0 mm (±0.5 mm). The sealant must be applied within 10 min. The silicone bead should not be spread. Only use released sealant listed in the Repair Products.
