Evaluation of elastomer bearings - AH00.10-P-0001-01A

WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL ALL

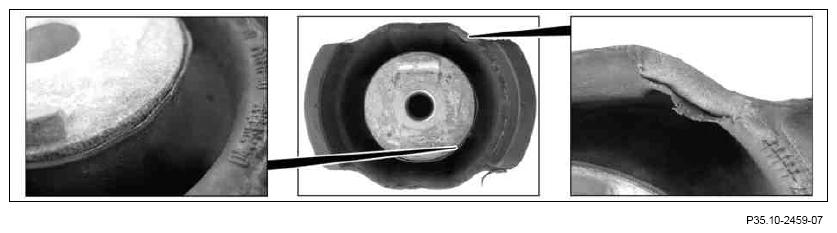

Fig 1: Identifying Elastomer Bearings

Courtesy of MERCEDES-BENZ USA

Topic: Sub-surface corrosion/flaking of the elastomer due to corrosion, on example BR169/245 rear axle center bearing Component OK

Peeling/flaking of the elastomer on the core or on the outer bushing is acceptable up to approx. 30 %.

This does not impede function in any way and should not be considered defective.

Topic: Front axle hydromount

When new

Fig 2: Identifying Front Axle Hydromount

Courtesy of MERCEDES-BENZ USA

Component OK

Microfissures up to approx. 30 mm in length which do not lead to fluid loss do not impede function in any way and should not be considered defective.

When subjected to cardanic deviation (full steering lock), these fissures may expand by 3-4 mm.

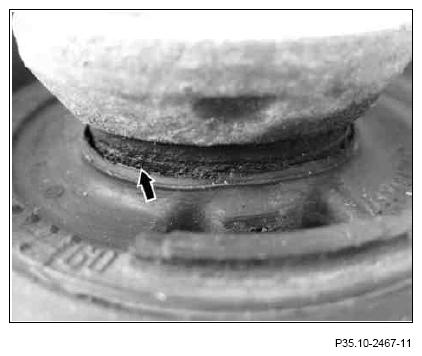

Fig 3: Identifying Hydromount (Component OK)

Courtesy of MERCEDES-BENZ USA

Component defective

Hydromount must be replaced.

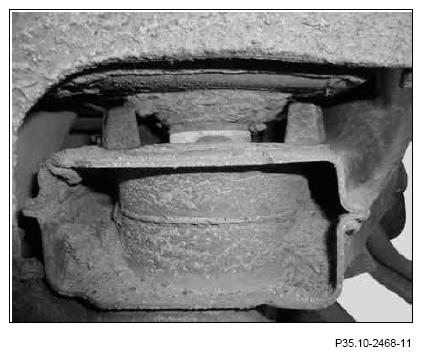

Fig 4: Identifying Defective Hydromount

Courtesy of MERCEDES-BENZ USA

Topic: Injection molding film

When new

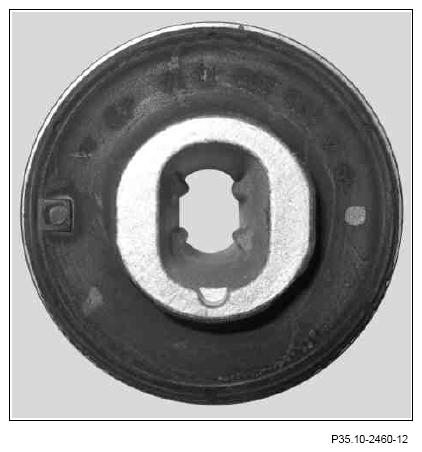

Fig 5: Identifying Injection Molding Film (1 Of 2)

Courtesy of MERCEDES-BENZ USA

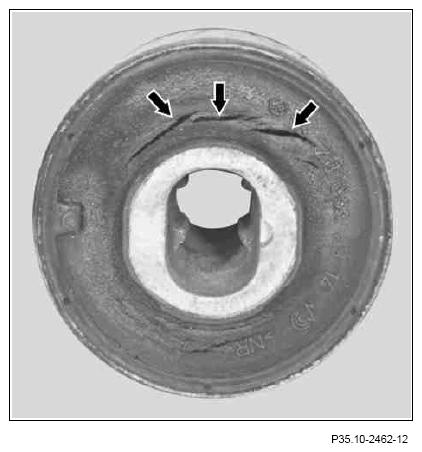

Fig 6: Identifying Injection Molding Film (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Component OK

During the manufacture of bearings, certain production methods or tools may cause a film to be left after injection molding.

This injection molding film can vary in its extent.

It does not represent a technical problem and should not be considered defective.

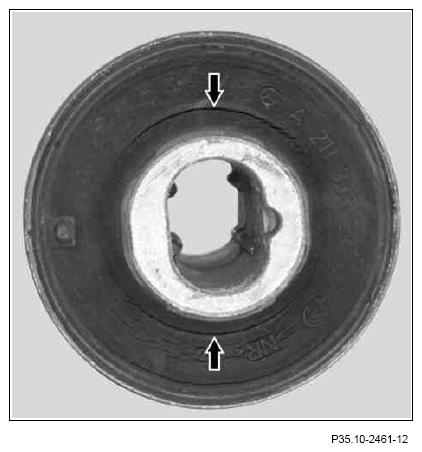

Fig 7: Identifying Injection Molding

Courtesy of MERCEDES-BENZ USA

Topic: Suspension subframe carrier

When new

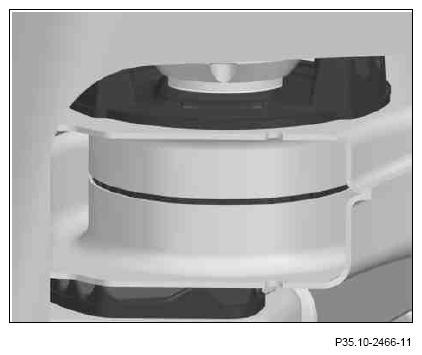

Fig 8: Identifying Suspension Subframe Carrier

Courtesy of MERCEDES-BENZ USA

Component OK

The bearing exhibits slight peeling from the core.

Peeling of up to 50 % from the core does not impede the function in any way.

The lateral crease can be incorrectly identified as peeling or as a fissure.

Fig 9: Identifying Separated Bearing

Courtesy of MERCEDES-BENZ USA

Component defective

The bearing has completely separated from the core.

The suspension subframe carrier must be replaced.

Fig 10: Identifying Defective Bearing

Courtesy of MERCEDES-BENZ USA
