Replacing rear crankshaft radial seal - AR03.20-P-3063SXI

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2013 Mercedes-Benz S65, 2013 Mercedes-Benz S63, 2013 Mercedes-Benz S600, 2013 Mercedes-Benz S550, and 2013 Mercedes-Benz S350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 207, 212, 218, 221, 222

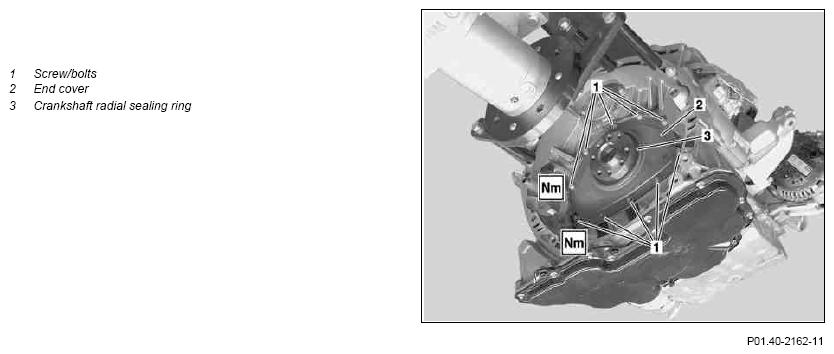

Fig 1: Identifying Rear Crankshaft Radial Seal

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove end cover (2)		AR01.40-P-8913SXI
1	Remove end cover (2)	The end cover (2) must be completely replaced since rear crankshaft radial sealing ring (3) in end cover (2) is vulcanized in. Leaks may occur otherwise. The end cover (2) and the rear crankshaft radial sealing ring (3) can only be replaced together.
2	Install in the reverse order
