Replace rear crankshaft radial sealing ring - AR03.20-P-3063SMG
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2013 Mercedes-Benz S65, 2013 Mercedes-Benz S63, 2013 Mercedes-Benz S600, 2013 Mercedes-Benz S550, and 2013 Mercedes-Benz S350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156 in MODEL 216, 221
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | All models | AH00.00-N-0001-01A | |
| 1 | Raise vehicle with lifting platform | ||
| 2 | Remove automatic transmission | AR27.10-P-0500SX | |
| 3 | Install retaining lock for crankshaft/starter ring gear | AR03.30-P-5000SMG | |
| 4 | Remove bolts (4) from drive plate (2) | *BA03.30-P-1002-01Q | |

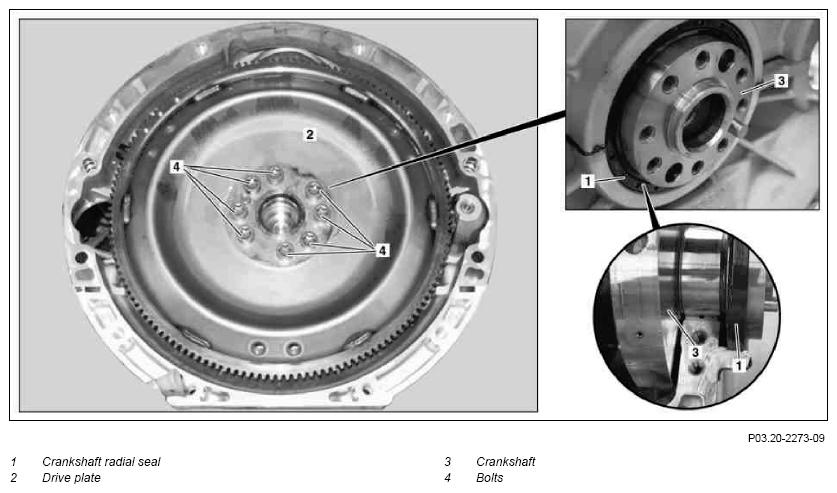

| 5 | Remove crankshaft radial sealing ring (1) using a suitable tool. | AR03.20-P-3063-01AMG | |
| Fig 2 | |||
| 6 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 7 | Conduct engine test run and check engine for leaks |
FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR
| Number | Designation | Engine 156 | ||
|---|---|---|---|---|
| BA03.30-P-1002-01Q | Bolt, starter ring gear/drive plate to crankshaft | Stage 1 | Nm | 20 |
| Stage 2 | Nm | 45 | ||
| Stage 3 | ∠° | 90 | ||
