Replace front crankshaft radial sealing ring - AR03.20-P-3000MC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2013 Mercedes-Benz S65, 2013 Mercedes-Benz S63, 2013 Mercedes-Benz S600, 2013 Mercedes-Benz S550, and 2013 Mercedes-Benz S350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 275
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Remove engine cover (1) front section | Engine 275.95 | AR01.10-P-2405LA |
| Engine 275.98 | AR01.10-P-2405IM | ||
| 2 | Remove fan shroud | Model 215, 220 except 215.379, 220.179 Model 230 |
AR20.40-P-6800AC |
| Model 215.379, 220.179 | AR20.40-P-6800IM | ||
| Model 216, 221 except 216.379, 221.179 | AR20.40-P-6800SZ | ||
| Model 216.379, 221.179 | AR20.40-P-6800SXM | ||
| 3 | Attach guard plate for radiator/condenser | ||
| Radiator guard plate/condenser | WF58.50-P-0110-01A | ||
| 4 | Remove poly-V belt (2) | Model 215, 220, 230 | AR13.22-P-1202L |
| Model 216, 221 | AR13.20-P-0001SZ | ||
| 5 | Remove belt pulley/vibration damper (3) | AR03.30-P-1600L | |
| 6 | Remove crankshaft radial sealing ring (4) | AR03.20-P-3000-01B | |

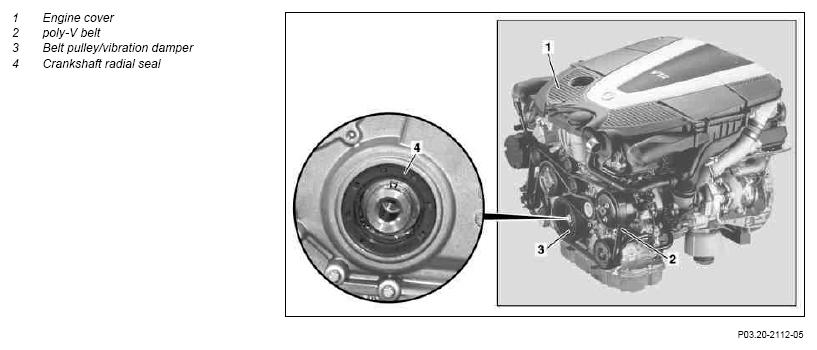

| Fig 2 | |||
| 7 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 8 | Check for leaks with engine running | ||
| Crack detector | *BR00.45-Z-1001-03A |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-03A | Crack detector | A 000 989 03 59 |
