Remove/install piston rings - AR03.10-P-7311MM
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2013 Mercedes-Benz S65, 2013 Mercedes-Benz S63, 2013 Mercedes-Benz S600, 2013 Mercedes-Benz S550, and 2013 Mercedes-Benz S350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 157, 278 in MODEL 216, 221, 222, 231
| Remove | |||
| 1 | Remove piston (5) | AR03.10-P-7021MM | |

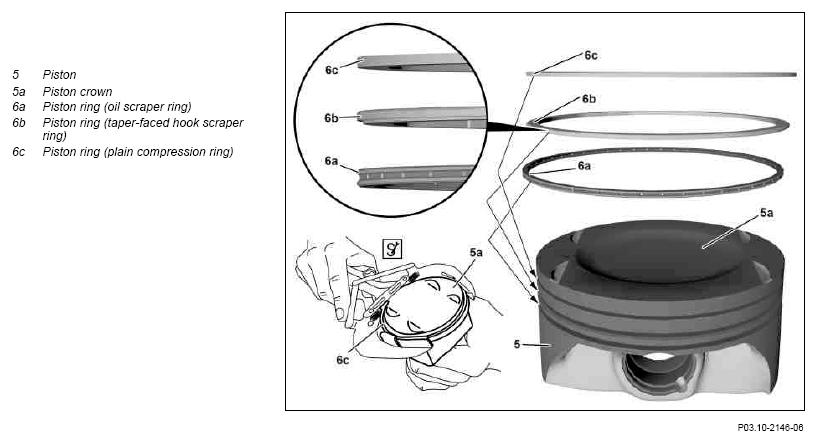

| 2 | Take off plain compression ring (6c) with piston ring pliers | Fig 2 | |
| 3 | Take off taper-faced hook scraper ring (6b) with piston ring pliers | Fig 2 | |
| 4 | Remove oil scraper ring (6) by hand | ||
| Install | |||
| 5 | Mount oil scraper ring (6a) by hand | ||
| 6 | Install taper-faced hook scraper ring (6b) with piston ring pliers | ||
| Fig 2 | |||
| 7 | Install plain compression ring (6c) with piston ring pliers | ||
| Fig 2 | |||
| 8 | Offset piston ring end gaps for piston ring (6a, 6b, c) by 120° degrees respectively on the circumference of the piston (5) | ||
| 9 | Install piston (5) | AR03.10-P-7021MM |
