Remove/install belt pulley/vibration damper - AR03.30-P-1600MM
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2013 Mercedes-Benz S65, 2013 Mercedes-Benz S63, 2013 Mercedes-Benz S600, 2013 Mercedes-Benz S550, and 2013 Mercedes-Benz S350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 157, 278 in MODEL 216
ENGINES 157, 276, 278 in MODEL 221
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Switch off ignition | ||
| 2 | Remove engine air intake duct upstream of air filter and front engine cover | ||
| 3 | Remove poly-V belt | Engine 276 | AR13.20-P-0001MMA |
| Engines 157, 278 | AR13.20-P-0001MMB | ||

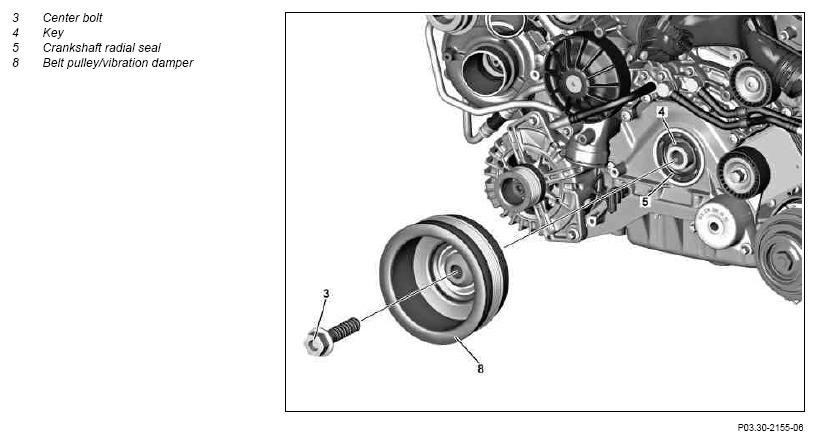

| 4 | Rotate engine at center bolt (3) for crankshaft to TDC | ||
| 5 | Install retaining lock for crankshaft/starter ring gear | AR03.30-P-5000SX | |
| 6 | Remove the center bolt (3) | ||
| *BA03.30-P-1001-01M | |||
| 7 | Detach belt pulley/vibration damper (8) from crankshaft | ||
| Checking | |||
| 8 | Check contact surface of the crankshaft radial sealing ring (5) on the belt pulley/vibration damper (8) hub for scoring and galling | ||
| 9 | Check front crankshaft radial sealing ring (5) and replace if necessary | When replacing the belt pulley/vibration damper (8) or in the event of leaks on the crankshaft radial sealing ring (5) | AR03.20-P-3000MM |
| 10 | Install in the reverse order | ||
| Checking | |||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 11 | Conduct engine test run and check engine for leaks |
FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR
| Number | Designation | Engine 157 | Engine 276 | Engine 278 | ||
|---|---|---|---|---|---|---|
| BA03.30-P-1001-01M | Center bolt for belt pulley on crankshaft | Stage 1 | Nm | 200 | 200 | 200 |
| Stage 2 | ∠° | 180 | 180 | 180 | ||
