Remove, install pressure differential sensor (DPF) - AR07.04-P-0012SXI
ENGINE 642 in MODEL 221
| Remove/install | |||
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| 1 | Remove engine trim panel | AR01.10-P-2405SXI | |
| 2 | Remove heat shield on the firewall | ||

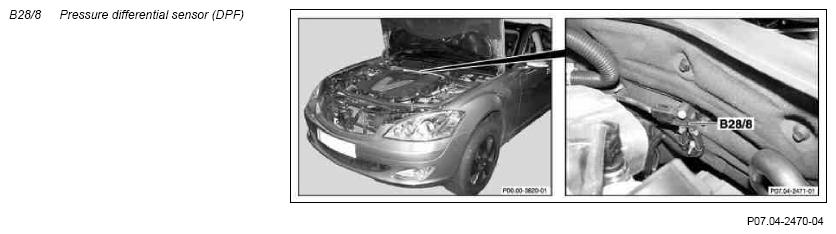

| 3 | Detach coupling on pressure differential sensor (DPF) (B28/8) | ||
| 4 | Release hose clamps | ||
| 5 | Detach molded hoses on pressure differential sensor (DPF) (B28/8) | ||
| 6 | Remove pressure differential sensor (DPF) (B28/8) | *BA07.04-P-1009-01G | |
| 7 | Install in the reverse order |
SENSORS
| Number | Designation | Engine 642 without particle filter | Engine 642 with particle filter | |
|---|---|---|---|---|
| BA07.04-P-1009-01G | Nut connecting pressure differential sensor to bracket | Nm | - | 10 |
