Remove/install ignition coils - AR15.12-P-2003SX
ENGINE 272, 273 in MODEL 221
ENGINE 273 in MODEL 216

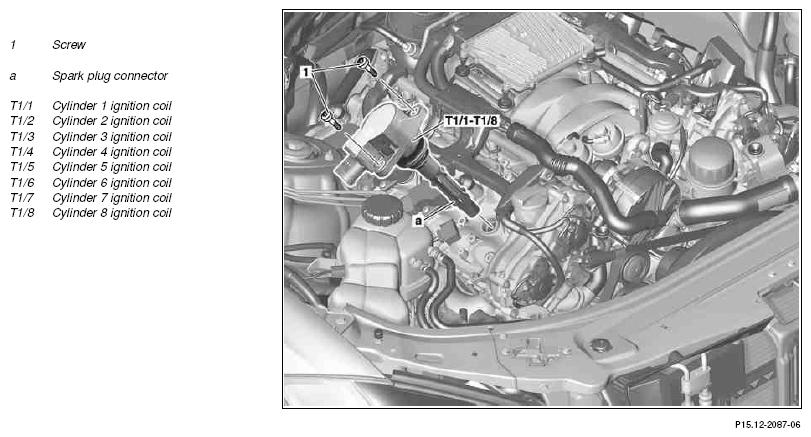

Shown on engine 273.961
| Remove/install | |||
| Risk of death caused by contact with parts conducting high voltages. | Do not touch parts which conduct high voltages. Persons who wear electronic implants (e.g. heart pacemakers) should never perform any work on the ignition system | AS15.10-Z-0001-01A | |
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage to ignition system | AH15.10-P-0002-01V | ||
| 1 | Switch off ignition | ||
| 2 | Remove air filter housing | AR09.10-P-1150SX | |
| 3 | Detach connector from the ignition coils (T1/1 or T1/6 or T1/1 up to T1/8) | ||
| 4 | Remove bolts (1) of ignition coils (T1/1 to T1/6 and T1/1 to T1/8) | *BA15.10-P-1001-04A | |
| 5 | Pull ignition coils (T1/1 to T1/6 and T1/1 to T1/8) with spark plug connectors (a) upwards and out | ||
| 6 | Install in the reverse order | ||
| 7 | Read out fault memory and erase if necessary | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
IGNITION COIL
| Number | Designation | Engine 272 | Engine 273 | |
|---|---|---|---|---|
| BA15.10-P-1001-04A | Bolt, ignition coil to cylinder head cover | Nm | 9 | 9 |
