Remove/install left cylinder head cover - AR01.20-P-5013MMB

ENGINES 157, 278 in MODEL 216, 221

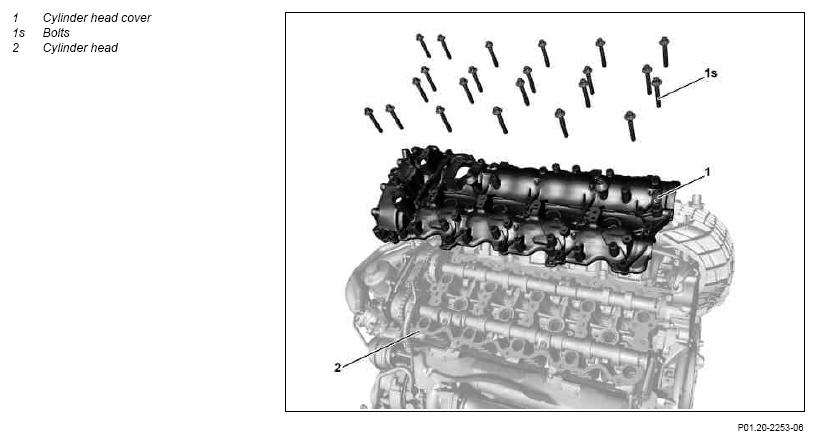

Fig 1: Identifying Left Cylinder Head Cover Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

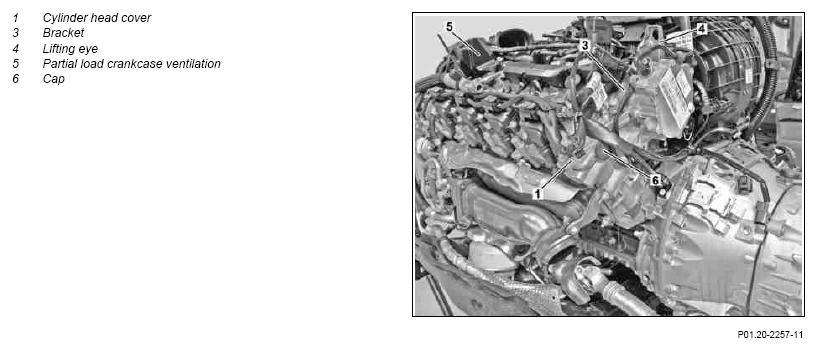

Fig 2: Identifying Left Cylinder Head Cover Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on threaded connections with aluminum screws		AH00.00-P-0006-01RM
1	Remove rail		AR07.03-P-1010MMB
2	Remove ignition coils		AR15.12-P-2003MM
3	Detach engine wiring harness on cylinder head cover (1)		AR01.00-P-2410-02MMB
4	Detach oil lines for turbocharger on cylinder head cover (1) and place to one side		AR18.30-P-6850MMB
5	Remove partial load crankcase ventilation (5) on cylinder head cover (1)
6	Remove bracket (3) on cylinder head cover (1)
7	Remove lifting eye (4) on cylinder head cover (1)
8	Remove bolt for vacuum pump on cylinder head cover (1)		AR43.05-P-1320MMB
9	Remove front cover at cylinder head (2)		AR01.30-P-5700MBL
10	Loosen bolts (1s) for cylinder head cover (1) in the reverse order of the tightening procedure and remove them	Replace bolts (1s).	AR01.20-P-5014-03MMB
			*BA01.20-P-1004-01L
11	Carefully pry off cylinder head cover (1) from cylinder head (2)	Do not  pound in prying tool between cylinder head cover (1) and cylinder head (2) otherwise the sealing surfaces will be damaged. Check for correct seating of the cap (6) of the exhaust camshaft between cylinder head cover (1) and cylinder head (2). Apply sealant to cylinder head cover (1): ↓
		Observe notes on sealant path for cylinder head cover (1).	AH01.30-P-1000-08MM
			Fig 3
		Loctite 5970 sealant	*BR00.45-Z-1013-01A
	Checking
12	Check camshaft mounts in cylinder head cover (1) and camshafts for galling and score marks
	Clean
13	Clean sealing surfaces at cylinder head (2) and cylinder head cover (1)	Do not use any sharp-edged tools or abrasive paper as this will damage the sealing surfaces.	AR01.00-P-0050-01A
		Loctite 7200	*BR00.45-Z-1038-04A
		Loctite 7063 cleaning spray (150 ml)	*BR00.45-Z-1046-04A
14	Install in the reverse order
	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
15	Conduct engine test run and check engine for leaks while it is running

CRANKCASE VENTILATION, CYLINDER HEAD COVER

Number	Designation			Engine 157	Engine 278
BA01.20-P-1004-01L	Bolt, cylinder head cover to cylinder head	Stage 1	Nm	12	12
		Stage 2	∠°	90	90

Fig 3: Identifying Squeeze Gun (112 589 00 25 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1013-01A	Loctite 5970 sealant	A 003 989 98 20
BR00.45-Z-1038-04A	Loctite 7200	Henkel Loctite Deutschland GmbH
BR00.45-Z-1046-04A	Loctite 7063 cleaning spray (150 ml)	A 001 986 71 71 10
