Remove/install engine - AR01.10-P-2400SMG

ENGINES 156 in MODEL 221, 216

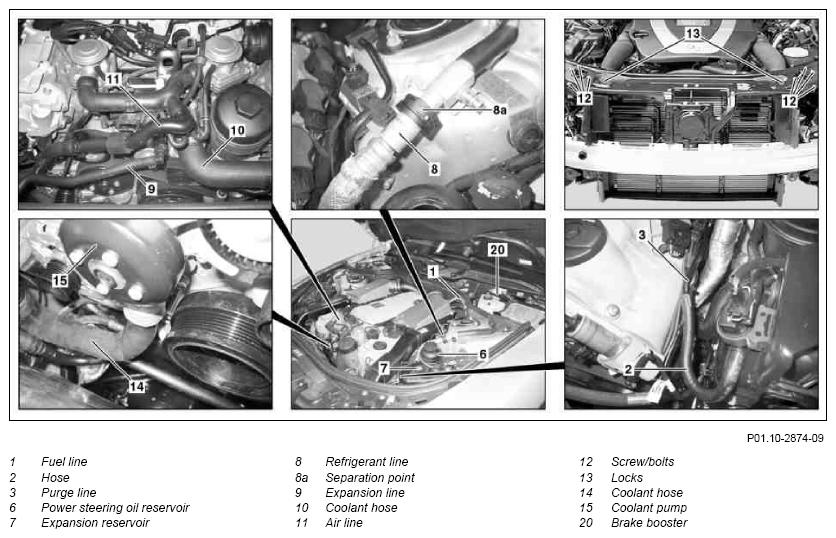

Fig 1: Identifying Engine Remove/Install Components (1 Of 3)
G10126170Courtesy of MERCEDES-BENZ USA

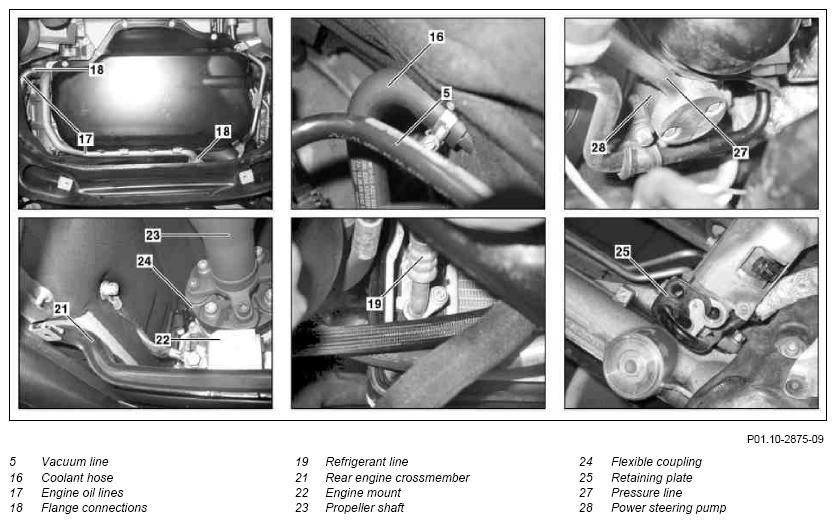

Fig 2: Identifying Engine Remove/Install Components (2 Of 3)
G10126171Courtesy of MERCEDES-BENZ USA

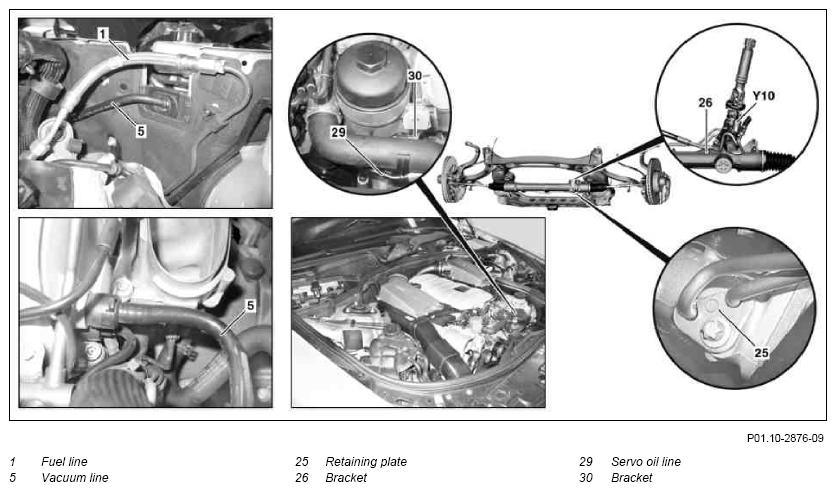

Fig 3: Identifying Engine Remove/Install Components (3 Of 3)
G10126172Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or tilting off of the vehicle lift. Align vehicle between vehicle lift columns and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof Keep body parts and limbs well clear of moving parts. AS00.00-Z-0011-01A
DANGER Risk of explosion  caused by escaping oxyhydrogen gas. Risk of injury  caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries  caused by short circuit. Risk of poisoning  caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards.
Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground.
Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers.
AS54.10-Z-0001-01A
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.
AS00.00-Z-0005-01A
NOTES Notes on self-locking nuts and bolts All models AH00.00-N-0001-01A
1 Deactivate easy entry/exit function Vehicles with code (275) Memory package (driver seat, steering column, mirrors)
NOTES Otherwise the driver seat and steering wheel move into a different position if the driver door is opened or closed for example. The upper frame may be damaged when the holding device is installed.
IMPORTANT Deactivation ensues via buttons on the steering wheel in the "Comfort" menu of the multifunction display.

2 Turn key in ignition lock to position "0" IMPORTANT Vehicles with code (889) Keyless Go: Switch off engine, remove Keyless Go cards from vehicle and store outside of the transmission range.
3 Fix steering wheel in center position SPECIAL TOOL Holding device Fig 4
4 Open engine hood and move to vertical position
5 Disconnect battery ground line NOTES Insulate ground line as a protection against unintentional contact of detached ground line with ground point of battery. AR54.10-P-0003SX
NOTES Notes on battery All models AH54.10-P-0001-01A
6 Secure vehicle on vehicle lift against falling over   AR00.60-P-0100SX
7 Remove air filter housing   AR09.10-P-1150SMG
8 Drain air conditioning system IMPORTANT Vehicles with code (580) Automatic air conditioning and with code (581) Comfort automatic air conditioning.
INSTALLATION IMPORTANT Replace desiccant cartridge.
AR83.30-P-1760SX
9 Disconnect engine wiring harness   AR01.00-P-2410SMG
10 Disconnect hose (2) at purge line (3) on engine at the left front
11 Disconnect vacuum line (5) from brake booster (20) IMPORTANT Remove clip and lay vacuum line (5) on brake booster (20) to one side.
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning  caused by inhaling and swallowing fuel and risk of injury  to eyes and skin caused by contact with fuel No fire, sparks, open flames or smoking.
Only pour fuels into suitable and appropriately marked containers.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
12 Detach fuel line (1) from fuel distributor IMPORTANT Release fuel pressure with pressure hose via service valve AR07.03-P-1460-01TMG
    TORQUE SPECIFICATION *BA07.03-P-1001-01C
    SPECIAL TOOL Pressure hose Fig 5
13 Suction off hydraulic fluid out of power steering (6) oil reservoir FLUID SPECIFICATION Power steering *BF46.20-P-1001-01A
SPECIAL TOOL Hand pump Fig 6
14 Empty expansion reservoir (7) for Active Body Control system using a hand pump Vehicles with code 487, Active Body Control (ABC).
SPECIAL TOOL Hand pump Fig 6
15 Remove power steering oil reservoir (6)   AR46.25-P-1000SY
16 Detach oil line from expansion reservoir (7) for Active Body Control system Vehicles with code 487, Active Body Control (ABC).
17 Disconnect refrigerant line (8) at separation point (8a) using a detaching tool SPECIAL TOOL Detaching tool Fig 7
18 Drain coolant at radiator   AR20.00-P-1142SMG
NOTES Notes on coolant All engines AH20.00-N-2080-01A
    FLUID SPECIFICATION Cooling system *BF20.00-P-1001-02U
19 Detach compensation line (9) on thermostat housing
20 Detach coolant hose (10) on thermostat housing
21 Disconnect air line (11) to auxiliary air pump and place to one side
22 Remove electric fan   AR20.40-P-5000SMG
23 Remove upper radiator crossmember Remove screw/bolts (12), locks (13) and unclip hood release cable. Unclip air ducting on the side and remove radiator crossmember upwards.
24 Disconnect coolant hose (14) to coolant pump (15)
25 Disconnect coolant hose (16) on front plate connection
26 Remove lower engine compartment paneling   AR61.20-P-1105SX
27 Drain engine oil FLUID SPECIFICATION Engine oil *BF18.00-P-1001-01V
28 Detach oil cooler lines from automatic transmission on radiator See: ↓
Remove/install oil cooler lines for automatic transmission. AR27.55-P-0600SX
SPECIAL TOOL Set of stop plugs Fig 8
29 Disconnect engine oil lines (17) at flange connections (18) INSTALLATION IMPORTANT Replace sealing rings.
TORQUE SPECIFICATION *BA18.30-P-1016-01B
30 Detach refrigerant line (19) on condenser TORQUE SPECIFICATION *BA83.30-P-1005-01K
31 Unscrew exhaust system to manifolds, brackets and on transmission IMPORTANT See: ↓
Remove/install components for exhaust system AR49.10-P-7100SX
32 Support transmission with transmission jack Transmission jack 2.0-7.0 t
Transmission plate for passenger cars and commercial vehicles

33 Remove engine crossmember (21) and engine mount (22)   AR22.10-P-1180SX
34 Disconnect propeller shaft (23) on transmission IMPORTANTRemoval:  The flex disk (24) remains on the propeller shaft (23).
35 Install rear engine crossmember (21)
36 Detach front engine mount Only remove screw/bolts on the underside. AR22.10-P-1260SX
37 Detach retaining plate (25) for pressure and return line to the power steering TORQUE SPECIFICATION *BA46.20-P-1003-01M
38 Unscrew bracket (26) of pressure line
39 Disconnect electrical connector to the power steering pump
40 Attach protective cover to cooler
41 Unscrew servo oil line (29) on bracket (30)
42 Remove pressure line (27) at power steering pump (28)
43 Hook engine hoist into engine lifting eyes Load regulator
44 Lift out engine IMPORTANT When lifting out the engine, ensure that no components in the engine compartment are damaged.
45 Install in the reverse order
46 Fill cooling system   AR20.00-P-1142SMG
FLUID SPECIFICATION Coolant *BF20.00-P-1001-02U
47 checking cooling system for leaks   AR20.00-P-1010SX
48 Fill power steering pump and bleed   AR46.30-P-0010SX
49 Check engine oil level
50 Check transmission oil level and correct if necessary   AR27.00-P-0270W
51 Perform basic programming
52 Read out fault memory and erase if necessary IMPORTANT Faults which may have been caused by disconnecting wires or by a simulation must be erased in the fault memory after completing the work.
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory STAR DIAGNOSIS diagnosis system AD00.00-P-2000-04A
INJECTORS, INJECTION VALVES, LINES

Number Designation Engine 156
BA07.03-P-1001-01C Union nut, fuel line to fuel distributor Nm 20
STEERING GEAR

Number Designation Model 216 except 4MATIC Model 221 except 4MATIC
BA46.20-P-1003-01M Bolt on clamp plate, high-pressure line/return line to rack-and-pinion steering Nm 20 20
OIL COOLING SYSTEM

Number Designation Engine 156
BA18.30-P-1016-01B Oil line flange bolt on oil cooler Nm 9
AIR CONDITIONING

Number Designation Model 221 Model 216
BA83.30-P-1005-01K Screw/bolt, high pressure line to fluid reservoir Nm 8 8
STEERING GEAR

Number Designation Model 216 Model 221
BF46.20-P-1001-01A Power steering Filling capacity Liters ≈1.0 ≈1.0
MB steering gear oil Specification
MB 345.0 Hydraulic Fluid A 001 989 24 03 (Pentosin CHF 11 S Hydraulic Fluid) MB 345.0 Hydraulic Fluid A 001 989 24 03 (Pentosin CHF 11 S Hydraulic Fluid)
COOLING SYSTEM

Number Designation Engine 156 in model 216, 221
BF20.00-P-1001-02U Cooling system Total filling capacity ≈Liters 10
Antifreeze/water Up to -37°C 50/50
up to -45°C 55/45
Specifications for Operating Fluids Specification
Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification
Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
ENGINE LUBRICATION SYSTEM

Number Designation Engine 156 in model 216, 221
BF18.00-P-1001-01V Engine oil Filling capacity (oil and filter change) Liters 9.4
Specifications for Operating Fluids Specification
Multigrade engine oils (specification 229.5). See https://bevo.mercedes-benz.com/index.php?language_id=1
Fig 4: Identifying Holding Device (129 589 01 21 00)
G07279187Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Pressure Hose (119 589 04 63 00)
G07742723Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Hand Pump (210 589 00 71 00)
G07742725Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Detaching Tool (211 589 00 63 00)
G07320627Courtesy of MERCEDES-BENZ USA
Fig 8: Identifying Set Of Stop Plugs (129 589 00 91 00)
G07742724Courtesy of MERCEDES-BENZ USA
