Remove/install engine from/onto front axle carrier - AR01.10-P-2510TW

ENGINES 273.962 in MODEL 211.090/290

ENGINES 273.924/968, 272.975 in MODEL 221.08/18

ENGINES 273.968 in MODEL 216

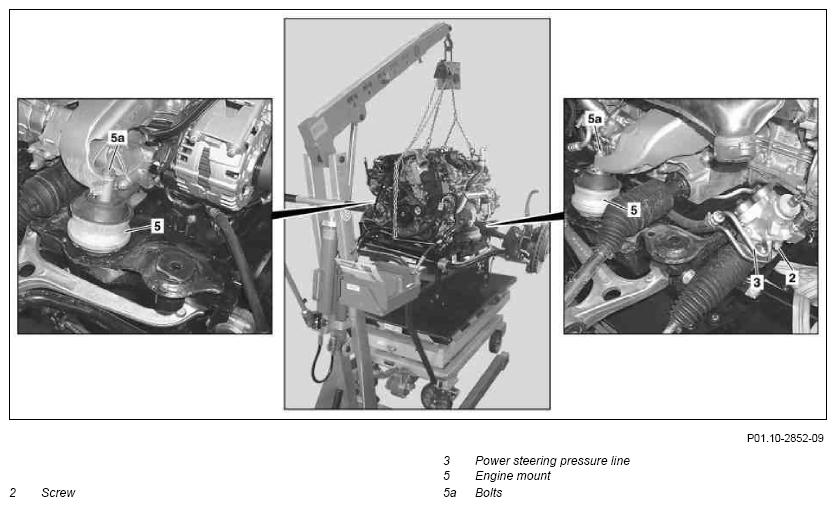

Fig 1: Identifying Engine Onto Front Axle Carrier Remove/Install Components - Shown On Model 211

Courtesy of MERCEDES-BENZ USA

Model 211

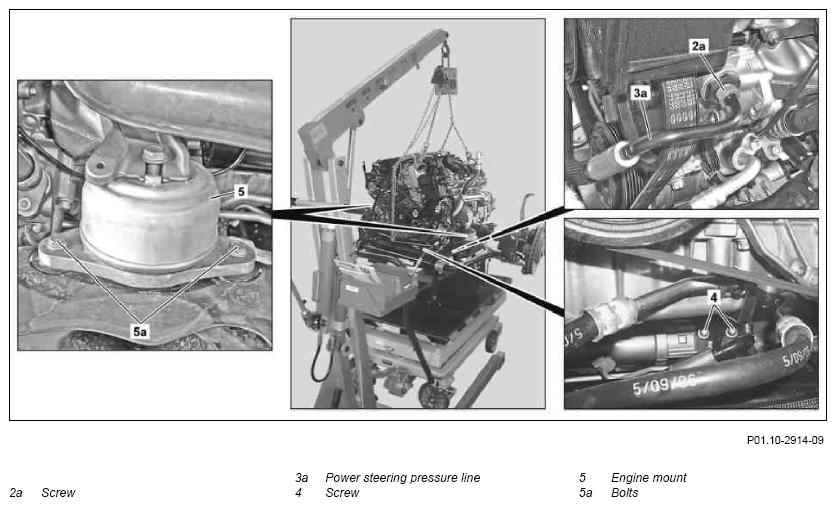

Fig 2: Identifying Engine Onto Front Axle Carrier Remove/Install Components - Shown On Model 216, 221

Courtesy of MERCEDES-BENZ USA

Model 216, 221

	Remove/install
1	Attach engine hoist to engine lifting eyes
2	Remove tensioning strap for engine-transmission unit
3	Secure front axle carrier on portable lifting platform with tensioning strap against slipping and falling down
4	Lift engine with a suitable lifting device and engine hoist	Only raise engine far enough until chain on the engine hoist to be lightly tensioned.
5	Remove front axle shafts	Model 211	AR33.30-P-0620I
5	Remove front axle shafts	Model 216, 221	AR33.30-P-0620SYZ
6.1	Remove bolts (4)	Model 216, 221 with engine 273
6.1	Remove bolts (4)		*BA46.30-P-1010-01F
6.2	Remove bolt (4)	Model 221 with engine 272
6.2	Remove bolt (4)		*BA46.30-P-1010-01F
7.1	Remove bolt (2) and pressure line (3)	Model 211
7.1	Remove bolt (2) and pressure line (3)		*BA46.30-P-1012-01F
7.2	Remove bolt (2a) and pressure line (3a)	Model 216, 221
7.2	Remove bolt (2a) and pressure line (3a)		*BA46.30-P-1012-01F
8	Remove bolt(s) (5a) from engine mount (5)	Model 211 (2 bolts)	*BA22.10-P-1002-03A
		Model 216 (1 bolt)	*BA22.10-P-1001-03C
		Model 221 (1 bolt)	*BA22.10-P-1001-03D
9	Lift off engine/transmission unit from front axle carrier	Ensure when lifting that engine oil pan is not damaged. Installation: Ensure that engine mount (5) is seated correctly in catches on front axle carrier.
10	Install in the reverse order

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		Model 211 with 4 MATIC
BA22.10-P-1002-03A	Front engine mount on front axle carrier	Nm	35

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Model 216.386/394
BA22.10-P-1001-03C	Bolt, front engine mount to front axle carrier	Nm	28

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Model 221.08/094/18/194
BA22.10-P-1001-03D	Bolt, front engine mount to front axle carrier	Nm	30

POWER STEERING PUMP

Number	Designation		Model 221 without code 487	Engine 272, 273 in model 211
BA46.30-P-1010-01F	Bolt, high-pressure expansion hose bracket to rack-and-pinion steering	Nm	10	10
BA46.30-P-1012-01F	Bolt, high pressure line to power steering	Nm	20	10

POWER STEERING PUMP

Number	Designation		Model 216 without code 487
BA46.30-P-1010-01F	Bolt, high-pressure expansion hose bracket to rack-and-pinion steering	Nm	10
BA46.30-P-1012-01F	Bolt, high pressure line to power steering	Nm	20
