Remove/install low temperature water circuit radiator - AR09.41-P-6935SXH
ENGINE 272.974 in MODEL 221.095/195
| Remove/install | |||
| 1 | Remove right engine intake air duct upstream of left air filter | ||

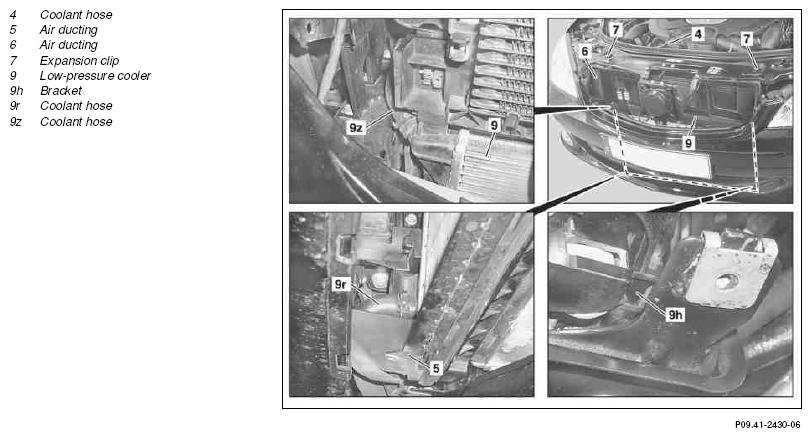

| 2 | Remove expansion clip (7) from engine radiator | ||
| 3 | Remove right air ducting (6) | ||
| 4 | Remove front section of lower engine compartment paneling | AR61.20-P-1105SX | |
| 5 | Unclip electrical circulation pump from bracket below on the alternator and set aside | AR09.41-P-6925SXH | |
| 6 | Remove lower air ducting (5) | ||
| 7 | Drain coolant on low-temperature cooler (9) | AR20.00-P-1142SX | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| 8 | Remove coolant hoses (9r, 9z) on low temperature cooler (9) | ||
| 9 | Press bracket (9h) upwards and unclip low temperature cooler (9) from engine radiator | ||
| 10 | Unhook low temperature cooler (9) from engine radiator and raise low temperature cooler (9) somewhat | ||
| 11 | Take low temperature cooler (9) down and out | ||
| 12 | Install in the reverse order | ||
| 13 | Pour in coolant | AR20.00-P-1142SX | |
| 14 | Inspect cooling system for leaks | AR20.00-P-1010SX | |
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 15 | Conduct engine test run and inspect cooling system for leaks |
