Remove/install oil pump - AR18.10-P-6020SMG
ENGINE 156 in MODEL 216, 221
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Open engine hood | ||
| 2 | Raise vehicle with lifting platform | AR00.60-P-1000SX | |
| 3 | Remove lower engine compartment paneling | AR61.20-P-1105SX | |
| 4 | Remove bottom part of oil pan | AR01.45-P-7555SMG | |

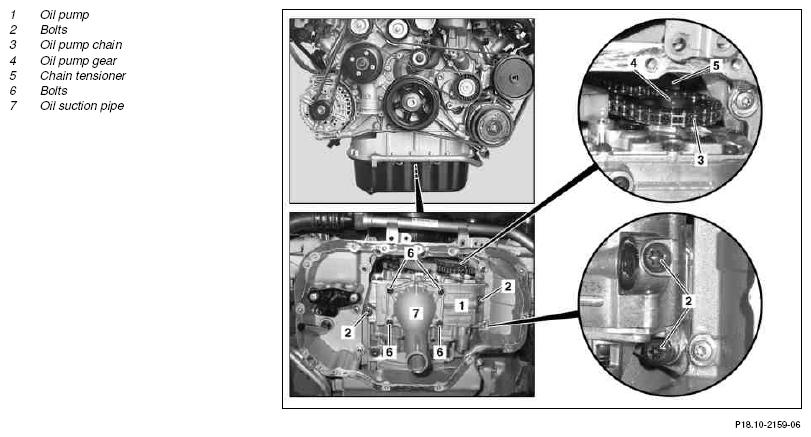

| 5 | Push back chain tensioner (5) and take oil pump chain (3) off oil pump gear (4) | ||
| 6 | Unscrew bolts (2) for oil pump (1) | *BA18.10-P-1001-01N | |
| 7 | Remove oil pump (1) |
|
|
| 8 | Clean oil strainer for oil pump (1) | ||
| *BA18.10-P-1004-01N | |||
| Checking | |||
| 9 | Check oil pump gear (4) for easy movement and damage | ||
| 10 | Install in the reverse order | ||
| 11 | Check engine oil level and adjust correctly | See: ↓ | |
| Engine oil and filter change | AP18.00-P-0101SMG | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 12 | Conduct engine test run and check engine for leaks while it is running |
OIL PUMP
| Number | Designation | Engine 156 | ||
|---|---|---|---|---|
| BA18.10-P-1001-01N | Fitted bolt, oil pump to crankcase | Nm | 20 | |
| BA18.10-P-1004-01N | Bolt, oil suction pipe to oil pump. | M6X16 | Nm | 8.5 |
